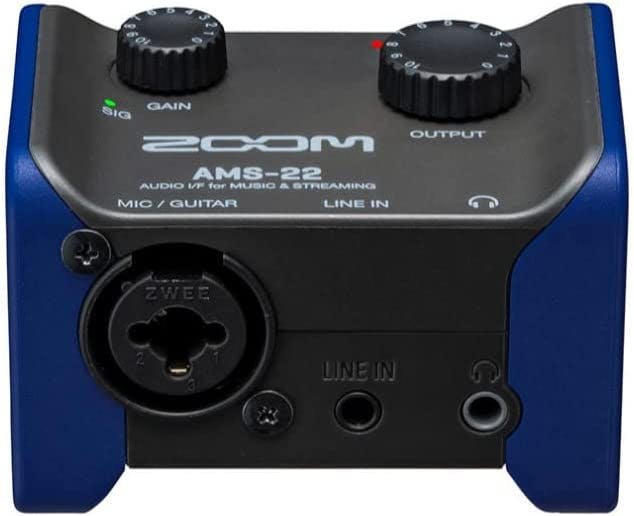

Zoom AMS-22 USB Audio Interface
Ideal For Musicians & Content Creators Who Livestream and Record
UK Delivery - From £2.99
Earn 53 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: AMS-22
You might also need
Product Description
If you're looking for an effortless solution when it comes to streaming on Twitch, or simply need a streamlined way to record your music through your favourite DAW, the AMS series from Zoom might be just the ticket.
Key Features
- Built for streaming and mobile recording
- Stereo line in, XLR/TRS combo input, headphone output and 2 TRS outputs
- Direct Monitor Switch - send your input signal to your headphones and route the same signal to streaming software or a DAW
- Powered from any Mac or PC through USB-C (or harness external power via your mobile phone or tablet)
- Apply background music to a stream, or perform live with an instrumental backing track using the Loopback Switch (combining playback from your laptop/PC with input audio)
- Integrates with the most popular music production applications and software
- Supports PC, Mac as well as Android and iOS devices
- Music Mode - capture your performances through Garage Band, Cubase, Pro Tools and more
- Streaming Mode - seamlessly stream your show through Twitch, Instagram, YouTube and other popular platforms
- Use tactile hardware switches to overcome regularly occurring streaming issues - all without the need for extra software
Record from Anywhere
Thanks to a combination of a stereo line in, an XLR/TRS combo input, headphone output (and a couple of TRS outputs to accommodate your monitors), set up and stream or make music wherever you might be!
Add to this the ability to power your AMS-22 from your Mac or PC via USB-C - and use external power while creating with a phone or tablet - and you've got yourself a truly portable auditory ally.
Multiple Modes
Select from two dedicated modes to take your content or music to new heights. Capture your best performances via the likes of Pro Tools and Cubase via Music Mode, or stream your gaming session through YouTube and other popular platforms.
What’s in the Box
- AMS-22 USB Audio Interface
- USB-C Cable
- Quick Tour
Specifications
Input and Output Channels
- Number of Input Channels: Mono (Mic/Guitar) 1; Stereo (Line In) 1
- Number of Output Channels: Stereo (TRS) 1; Stereo (Phones) 1
Connectors
- Mic/Guitar - Type: XLR/TRS combo jack
- (XLR: 2 Hot, TRS: Tip Hot)
- Mic/Guitar - Input Gain +8 - +54 dB (MIC) / +8 - +54 dB (Guitar)
- Mic/Guitar - Input impedance XLR: 2 kΩ (MIC); TS: 1 MΩ (Guitar)
- Mic/Guitar - Maximum input level XLR: +0.6 dBu (MIC); TS: +11 dBu (Guitar)
- Mic/Guitar - Phantom power +48 V
- Output (Standard Phone Jacks) - Type: TRS phone jacks (balanced)
- Output (Standard Phone Jacks) - Maximum output level −2 dBu (at 0 dBFS)
- Output (Standard Phone Jacks) - Output impedance 100 Ω
- Output (Headphone Jack) - Type 3.5mm stereo mini jack; 20 mW + 20 mW (32 Ω load)
- Output (Headphone Jack) - Output impedance 10 Ω
- USB: USB Type-C (audio interface function)
- DC 5V: USB Type-C (for power supply)
- Line In - Type: 3.5mm stereo mini jack
- Line In - Input: impedance 20 kΩ
- Line In - Maximum input level: +1.5 dBu
Frequency Response
- 44.1 kHz: +0/−2 dB (20 Hz – 20 kHz)
- 96 kHz: +0/−3 dB (20 Hz – 40 kHz)
Equivalent Input Noise
- –120 dBu or less (IHF-A) at +54dB/150Ω input
Audio Interface
- Input and Output Channels: Recording: 2 channels; Playback: 2 channels
- Sampling Frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
- Bit Depth: 24-bit
- Interface: USB 2.0
- Class: USB Audio Class 2.0
Power
- AC adapter (ZOOM AD-17): DC 5 V/1A
- • USB bus power is supported.
Rated Current
- USB bus power / DC 5 V power supply: 170 mA
Power Consumption
- 1.8 W maximum
Dimensions
- 68.0 mm (W) × 57.7 mm (D) × 46.0 mm (H)
Weight (unit only)
- 85 g
