Product Description
Here's what Yamaha have to say about the DZR12:
The DZR12 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 139dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivalled low-frequency sound reproduction, the DZR12 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
Key Features

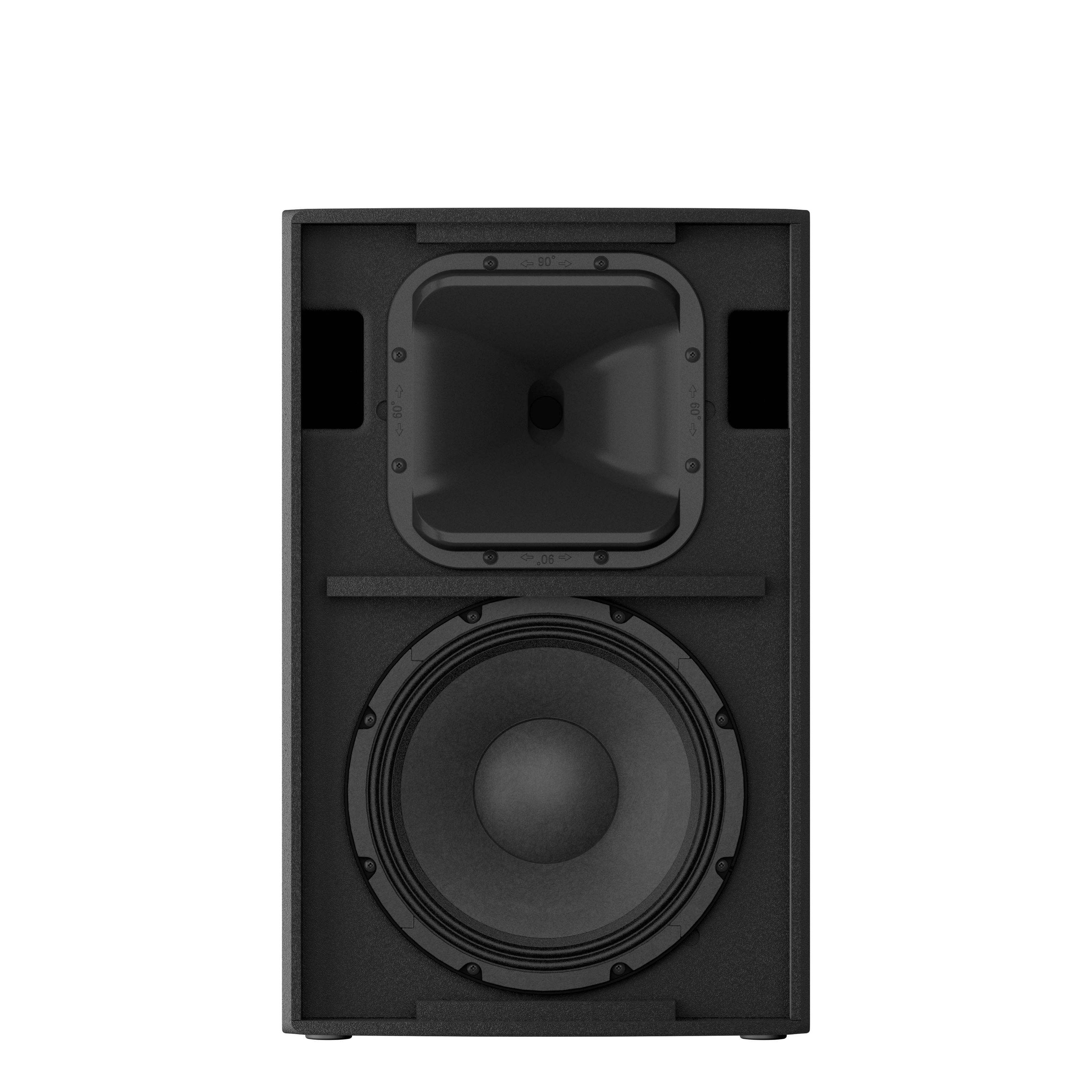

- 2-way powered loudspeaker with a 2” HF and a 12" LF
- Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today’s sound engineering demands
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- Floor monitoring setting enables mirroring configuration
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DZR12)
- Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement
Technical Specifications
- Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
- Frequency range (-10dB): 39Hz - 20kHz
- Coverage area: H90ﾟ x V60ﾟ(Rotatable)
- LF Components: 12" Cone, 3" Voice Coil, Neodymium magnet
- MF Components: -
- HF Components: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
- Crossover: 1.8kHz (FIR-X)
- Sampling frequency rate: Internal, 96kHz and FIR Filter
- A/D D/A Converters: 96kHz AD/DA
- Maximum output level (1m; on axis): 139dB SPL
- Power rating (Dynamic): 2000W (LF:1000W, MF/HF: 1000W)
- Power Rating (Continuous): 1300W (LF: 920W, MF/HF: 380W)

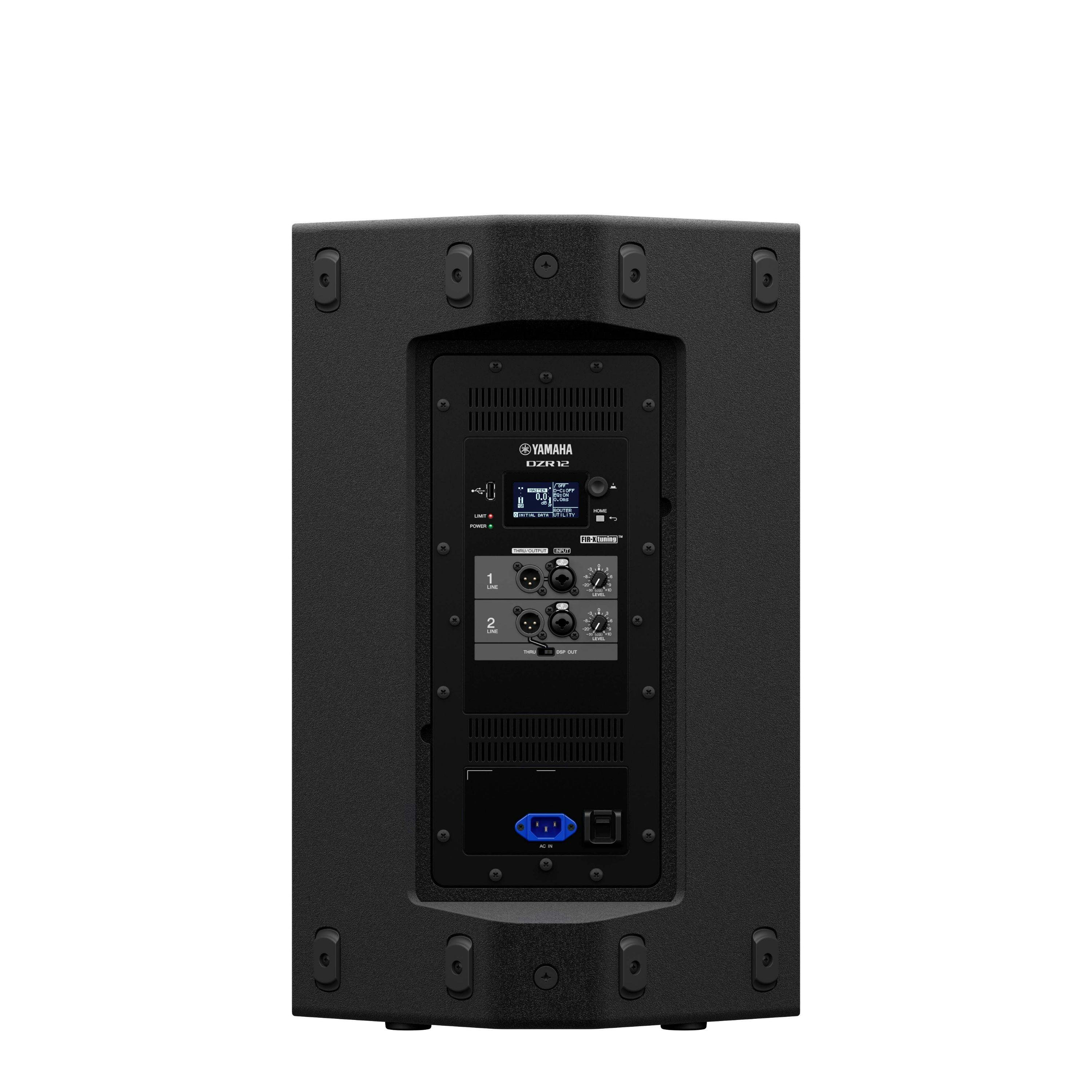

- Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
- Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
- AC: IEC AC inlet x1 (V-Lock)
- Amplifier class: Class-D
- Cooling: Fan cooling, Variable speeds
- Power consumption: 45W (Idle), 150W (1/8)
- Handle: Aluminium die-cast, Side x2
- Rigging: M10 x12
- Dimensions: W - 410 mm (16.1"), H - 646 mm (25.4") (with rubber feet), D - 394 mm (15.5")
- Net weight: 21.4kg (47.2lbs)
- Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
- Floor Monitor Angle: 50° Symmetrical

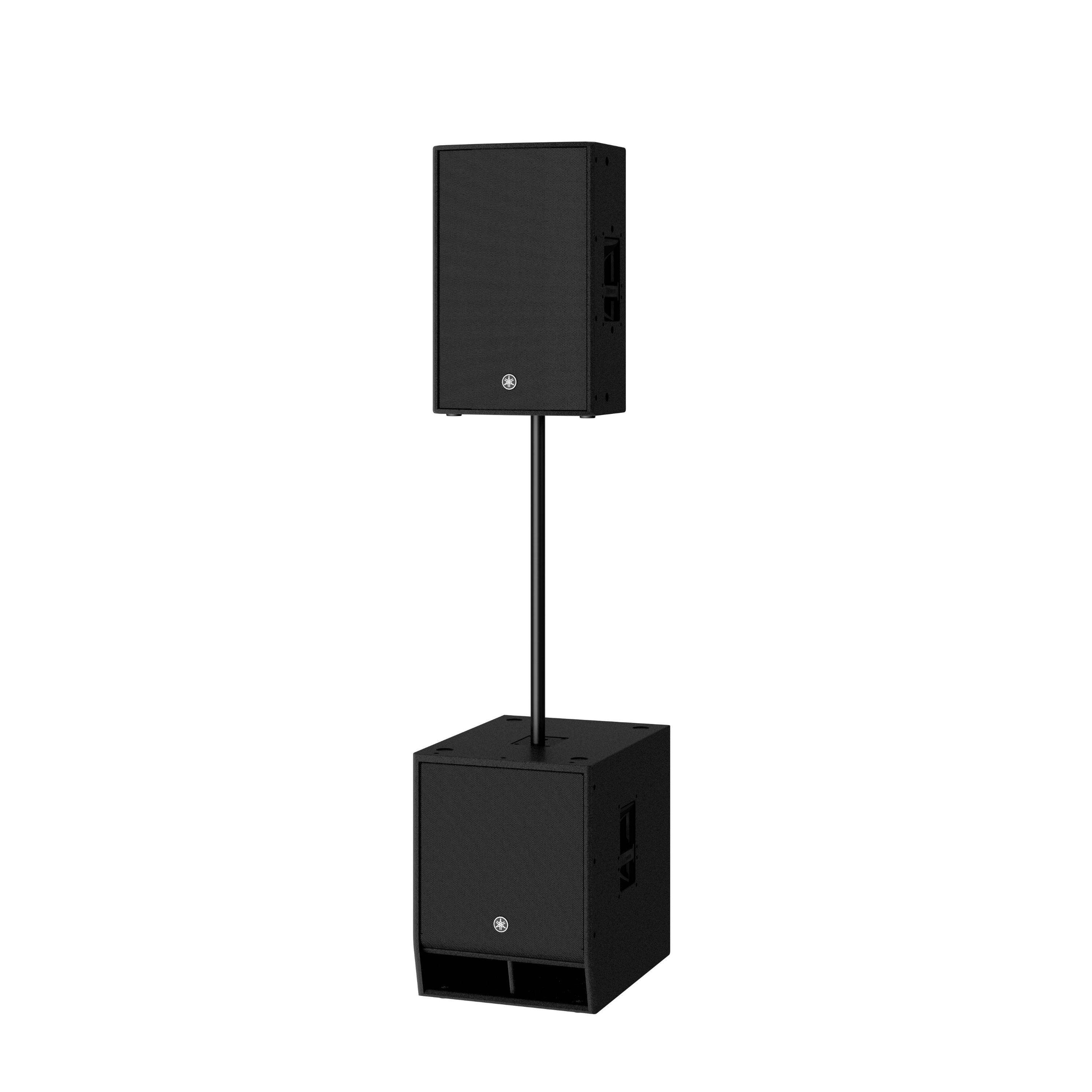

- Pole socket: Φ35 mm x2 (0° or -7°)
