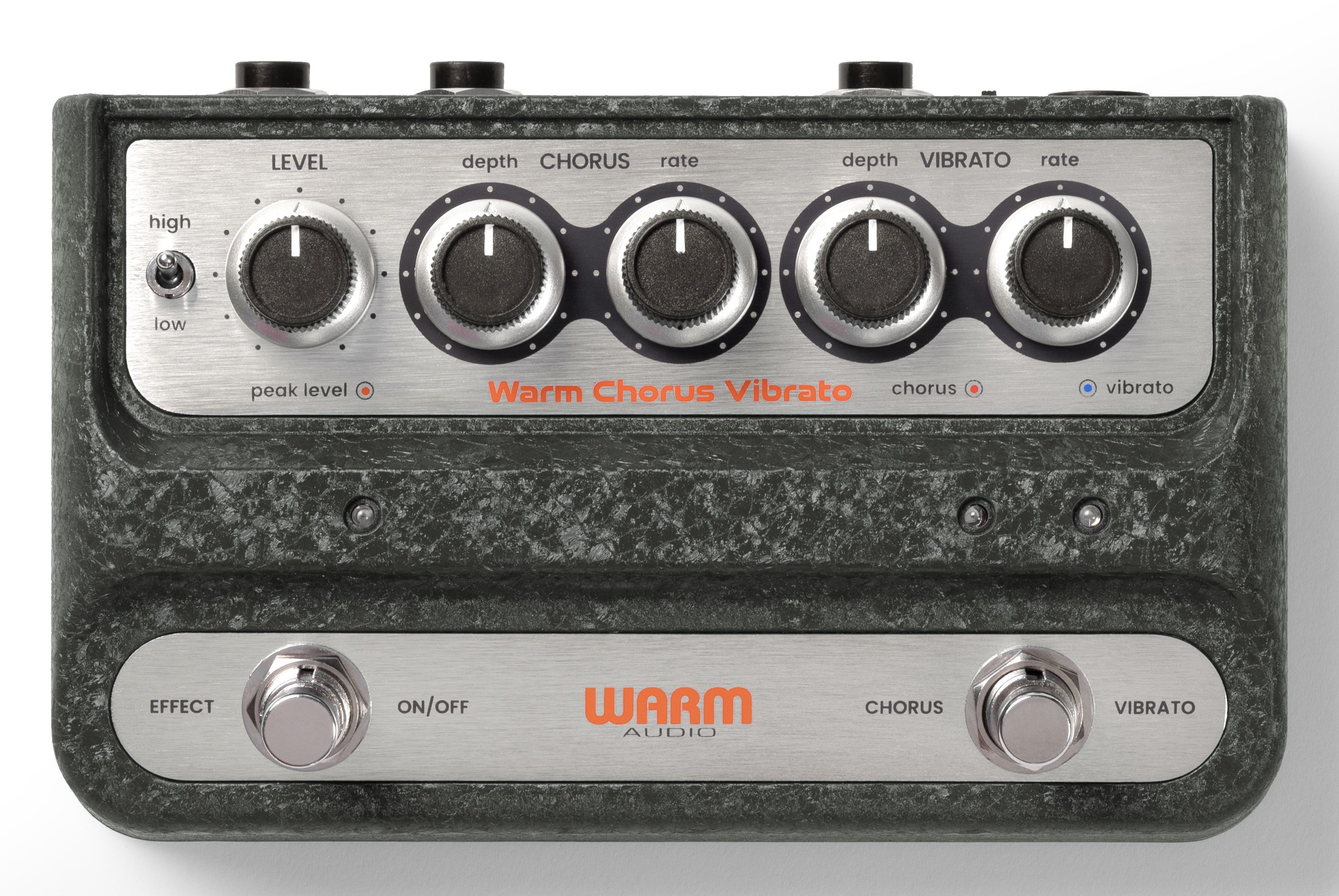

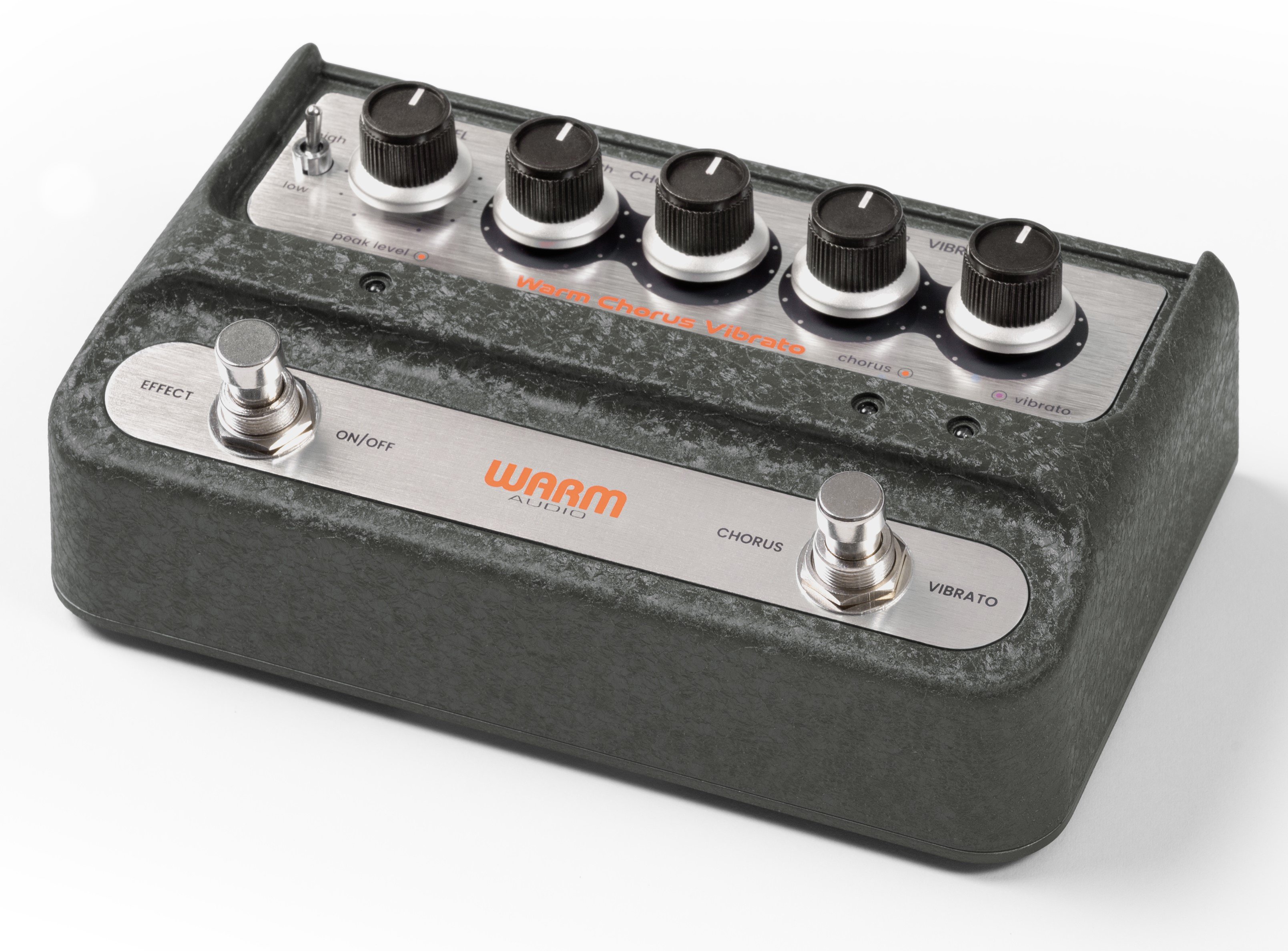

Warm Audio WA-C1 Chorus Vibrato Pedal
UK Delivery - From £2.99
Earn 189 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: WA-C1
You might also need
Get your 5 year warrenty through Warm Audio with your proof of purchase from Andertons Music Co. You can do that via this link.
Product Description
The WA-C1 Chorus Vibrato is a faithful recreation of the most celebrated all-analog chorus in guitar pedal history with additional no-compromise features for exploring legendary modulated tones. WA-C1 starts with a premium, all-analog preamp known for being a favorite of guitar players who demand ultra-responsiveness. The lush chorus setting features separated depth and rate controls to expand beyond the limitations of vintage units while delivering true-to-original tone. The vibrato section is preserved as authentic to the original pedals, and an added hi-z switch on the back of the pedal allows players to compensate for higher impedance of guitars vs. keyboards to add clarity to the high end on guitars if desired.
Key Features
- No Emulation, Pure Analog Preamp - The WA-C1 has a 100% analog preamp, matched to the renowned original, with level control that adds bite, depth, and even some natural compression to guitar tones. The entire pedal circuit is supported internally with a charge-pump voltage regulator to deliver robust power even when using an external 9V power supply. The preamp tone adds color and tone even in bypass mode.

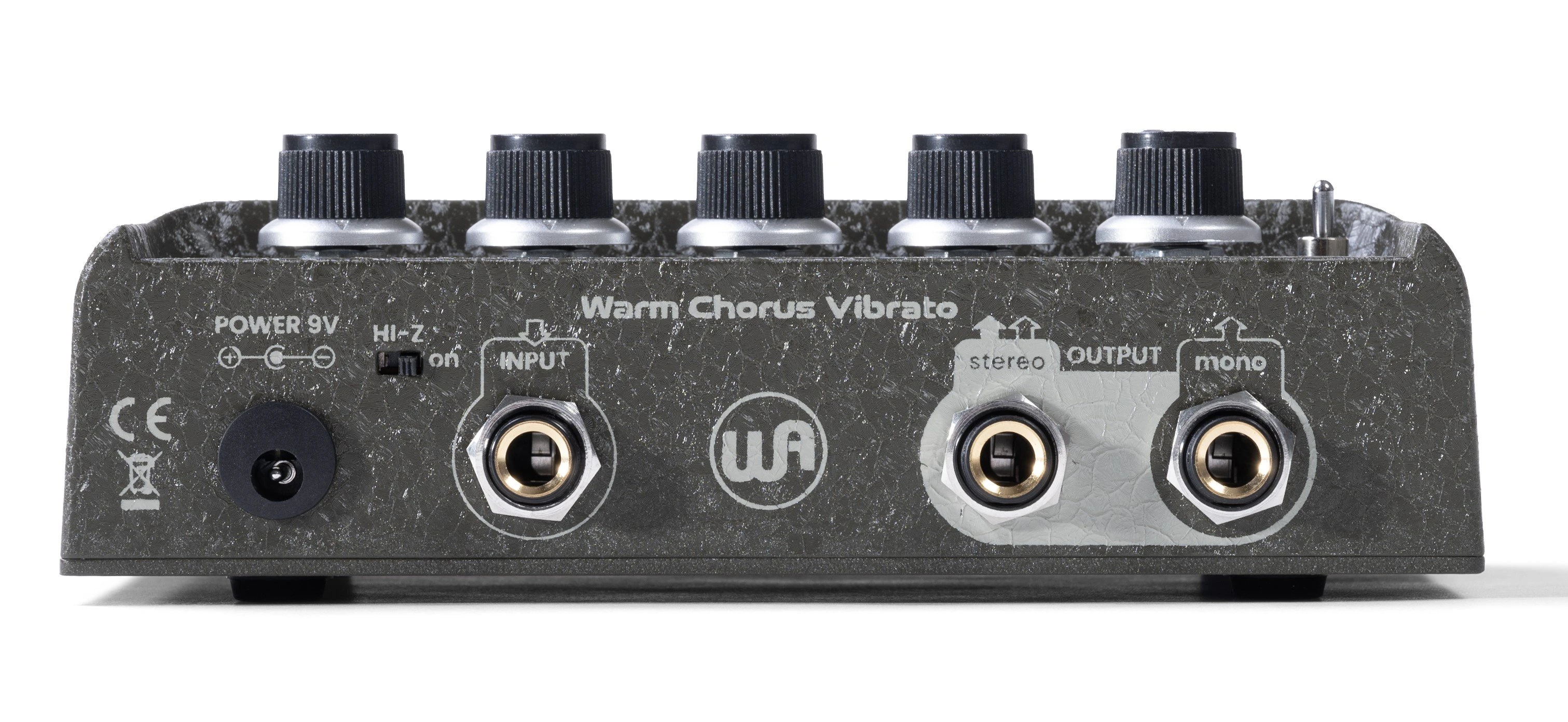

- Selectable Impedance For Multiple Sources - WA-C1 has selectable impedance on the back panel to select between the vintage input impedance of 50k ohm and a 1.1M Hi-Z setting better suited for passive string instruments to bring out clarity. This switch works in bypass mode to maintain clarity in bypass mode.
- Hand-Tested In Austin, TX - Like all Warm Audio gear, the WA-C1 is meticulously hand-tested and inspected by trained technicians with a passion for making music in Austin, TX USA.
The Definitive Original Chorus Stompbox
The WA-C1 faithfully recreates the most celebrated all-analog chorus and vibrato pedal known for pure analog tones and rich modulation. The WA-C1 combines a faithful circuit design with separate controls for depth and rate on the chorus side and added hi-z selection for a no-compromise 100% analog chorus experience. WA-C1 has a single input with both mono and stereo output operation.
Deep, Lush Chorus
The WA-C1 delivers lush midrange depth and detail associated with proper Bucket Brigade Device analog chorus pedals. Leveraging a modern MN3007 BBD chip recreation by Xvive with other premium components and boutique build quality, WA-C1 is carefully clocked to match the depth and rate of the original pedal to reproduce the detail expected from the most sought after vintage pieces.
Rich, Three-Dimensional Vibrato
When it’s really time to wobble, engage the vibrato setting on Warm Chorus Vibrato for added speed and bounce to your tone. Experimenting with the vibrato side yields rotary-like modulation tones perfect for funk, fusion, blues, jazz and more. WA-C1 adds a flashing LED for effect monitoring on the face showing which setting is engaged along with the rate of the modulation.
Separate Depth & Rate Controls For Chorus
WA-C1 has separate depth and rate controls vs. the vintage “intensity” control. On vintage units, “intensity” increased both depth and rate simultaneously, with the WA-C1, you can go beyond the limitations of vintage pedals by dialing in more depth and slower rates for even richer chorus tones.
Specifications
- 100% Analog Stereo Chorus & Vibrato Pedal With Depth & Rate Controls & Selectable Impedance
- Controls: High/Low Input Sensitivity, Preamp Level, Chorus Depth & Rate, Vibrato Depth & Rate, Effect On/Off, Chorus/Vibrato Switch, Hi-Z On/Off.
- Components: (5X) IC’s (Including 3X Texas Instruments Premium Audio Op Amps In Signal Path) | (11X) Discrete Transistors | (3X) FETs | (19X) Diodes 2 x MOSFETs and a premium Xvive MN3007 BBD chip recreation.
- Power consumption: 800mW; 90mA at 9V With Vintage-Correct Internal Voltage Operation
- Via Dual DC-DC Voltage Converter
- Input sensitivity: 80mV /1 0mV
- Output level: 315mV
- Jacks: (1X) Input, (2X) Outputs
- Dimensions: W: 6.5” | H: 3.8” | D: 1.6” | Weight: 1.9 lbs
