Universal Audio OX Amp Top Box
Premium Reactive Load Box
FREE UK Delivery
Earn 3282 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: OX
You might also need
Product Description

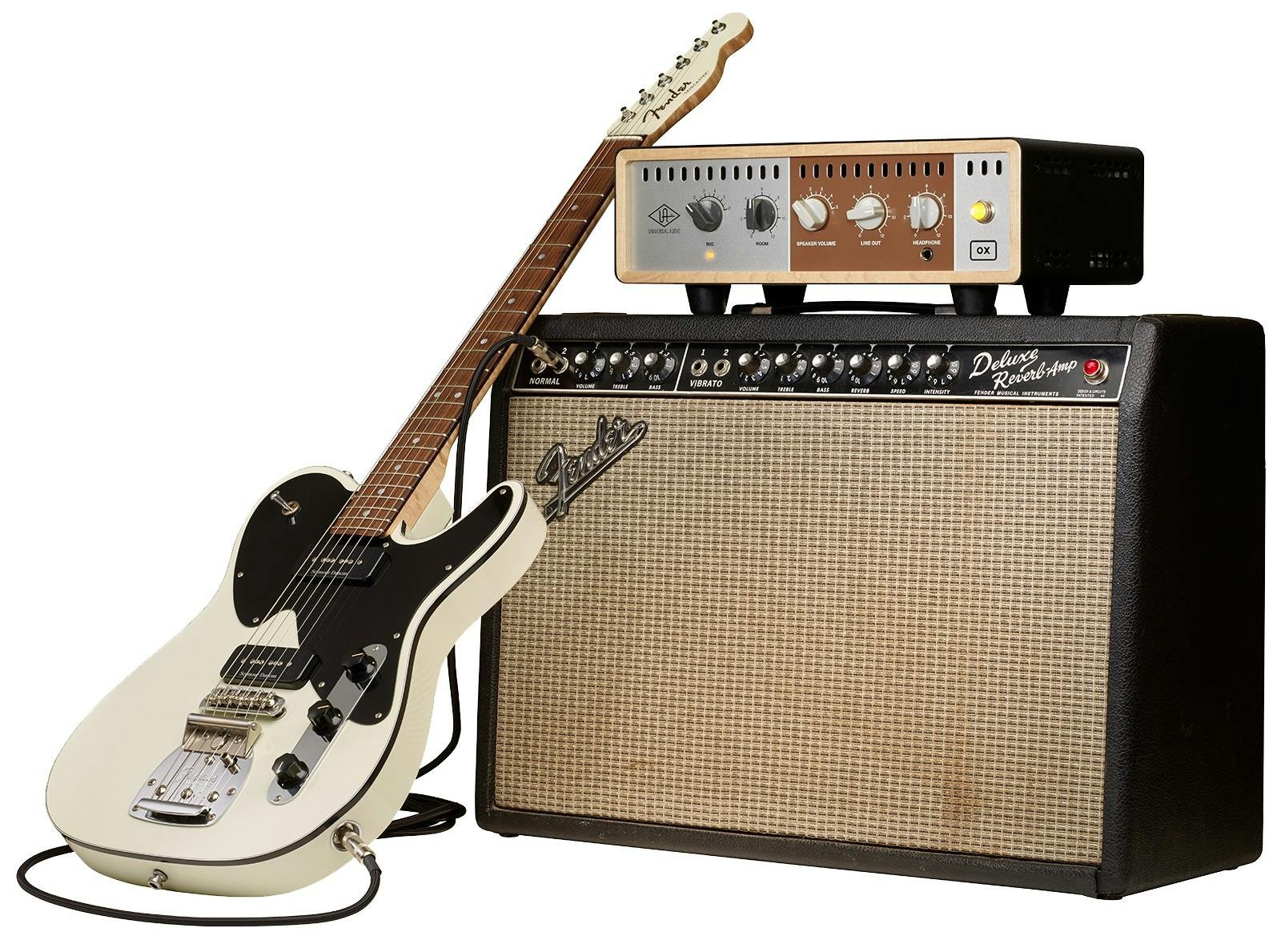

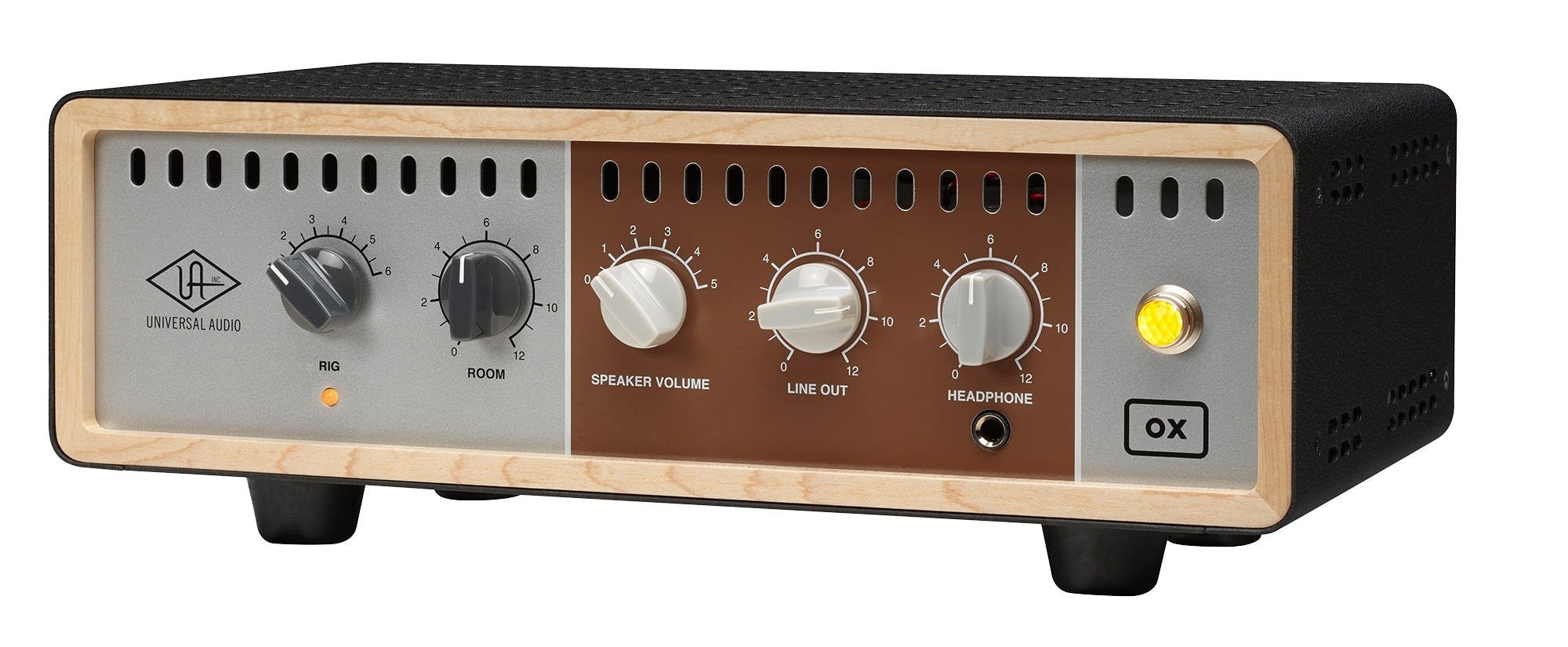

The Universal Audio OX Amp Top Box is a cutting-edge unit, allowing you to get the sweetest tones from your tube amplifiers but at ear-friendly volumes. Essentially an amp load box and attenuator, this amazing piece of gear goes one step further - in typical Universal Audio fashion!
With many sophisticated features such as dynamic speaker modelling and cabinet emulation, the OX also has a dedicated app to let you really fine-tune your tones. Old-school circuitry meets modern flexibility when it comes to the OX, with UA's boutique analogue quality ensuring that none of your base tone is hindered by digital processing, but rather embellished by the convincing modelling technology.
Key Features
- Get the ultimate tone out of your tube amp — anywhere, and at any volume
- Pair your amp to the world's best reactive load, with boutique UA analog quality — built for years of home and studio use
- Instantly audition dozens of album-quality mic and guitar cabinet setups with front panel "Rig" control
- Get authentic "edge of destruction" tones complete with speaker breakup and cone cry, thanks to UA Dynamic Speaker Modeling
- Premium, no-compromise analog reactive load box for tube guitar amps
- Five finely-tuned guitar amp attenuation levels — from off, to whisper quiet, to full band volume
- Front-panel “Rig” control for instant, album-quality mic and speaker cabinet emulations
- UA Dynamic Speaker Modeling emulates speaker breakup and cone cry
- World-class Universal Audio EQ, compression, delay, and reverb effects built-in
- Selectable 4, 8, and 16-Ohm operation
- Front-panel Headphone out for silent practice with cranked tones
- Balanced TRS line outs, and S/PDIF digital outputs for stereo recording
- Pair with OX mobile or desktop app over Wi-Fi for editing and saving presets
- Speaker cables not included
Get The Most Out Of Your Amp - At Any Volume!
Nothing beats the sound of a real, genuine tube amplifier, but they only sound their absolute best when they're cranked. This is usually fine in most live situations, but if you're playing at home and want all of the tonal goodness from your super-loud Plexi or big Fender combo at a lower volume, it's not achievable. But that's where the OX Top Box comes in...
By plugging your amplifier into the OX, the unit ensures that it is safely loaded, to prevent any damage from occurring without the cabinet. A speaker cabinet can of course be used in conjunction with the OX, and with selectable 4, 8, and 16-Ohm operation, most amplifiers will be compatible.
The main function of the OX though is its attenuation and modelling capabilities. By attenuating your amplifier, this means that you can turn up the master volume so that all of the rich, harmonic content is brought out for the ultimate tone. Then, you can use the OX's own volume control to monitor the overall output, giving you your favourite amp sound at any volume!
This not only makes the OX Top Box an incredible tool for home use, but also for studio recording. And with balanced TRS line outs and S/PDIF digital outputs, you can record directly into an interface or mixing desk, and even send the signal directly to front-of-house in stereo for a fuller sound when playing live. It's that flexible!
Speaker & Cabinet Emulation
UA are renowned for their incredible plug-ins for DAWs, and they've integrated their convincing modelling technology into the OX. Fully accessible via the free OX app, you can choose from multiple speaker and cabinet models, with the former capable of emulating speaker breakup and cone cry for the most genuine tones conceivable.
The cabinet models are also very detailed and accurately matched to their real-life counterparts, letting you find the best pairing for your amplifier. This is another great feature that makes the OX perfect for studio use, as you can easily experiment with your setup to find the optimal tone on-the-fly.
And it doesn't end there, as the OX also boasts mic emulations, with the app letting you even adjust its placement on the simulated cabinets/speakers. And top-quality EQ, compression, delay, and reverb effects are also built into the OX, giving you some essential effects to play around with!
Included in the box
- OX Amp Top Box Unit
- External Power Supply
- IEC Power Cable — US, EU, or UK (region dependent)
- Quick Start Guide
- RIG Control Presets
- Safety & License Sheet
Technical Specifications
I/O Complement
- Amplifier Input: One
- Speaker Output One
- Line Outputs: Two (one stereo left/right)
- Headphone Output: One (stereo left/right)
- Digital Outputs: Two (mirrored)
Amplifier Input
- Connector Type: ¼” Female TS Unbalanced
- Input Impedance: 4/8/16 Ohms (selectable)
- Maximum Input Power: 150 Watts RMS, 200 Watts peak
- Safety Load (power off): 16 Ohms
Speaker Output
- Connector Type: ¼” Female TS Unbalanced
- Output Attenuation: Five Attenuation Steps and Speaker Off
- Output Latency: None (pure analog)
Line Outputs 1 – 2
- Connector Type: ¼” Female TRS Balanced
- Dynamic Range: 114.5 dB (A-weighted)
- Frequency Response: 20 Hz – 20 kHz, ±0.1 dB
- Signal-to-Noise Ratio: 114.0 dB (A-weighted)
- Total Harmonic Distortion + Noise: -110 dB @ -3 dBFS
- Channel Separation: 129 dB
- Output Impedance: 100 Ohms
- Maximum Output Level: 20.2 dBu (balanced)
- Output Latency: 2.77 milliseconds (122 samples @ 44.1 kHz)
Stereo Headphone Outputs
- Connector Type: ¼” Female TRS Stereo
- Dynamic Range: 113.0 dB (A-weighted)
- Frequency Response: 20 Hz – 20 kHz, ±0.1 dB
- Signal-to-Noise Ratio: 113.0 dB (A-weighted)
- Total Harmonic Distortion + Noise: -107 dB @ -3 dBFS
- Maximum Output Power: 80 milliwatts into 600 Ohms
- Output Latency: 2.77 milliseconds (122 samples @ 44.1 kHz)
Digital Outputs
- Format: S/PDIF IEC958
- Connector Type 1: Female Phono (RCA)
- Connector Type 2: Optical TOSLINK JIS F05
- Sample Rate & Bit Depth: 44.1 kHz, 24-bit
- Output Latency: 2.57 milliseconds (113 samples @ 44.1 kHz)
Electrical
- Power Supply: External AC to DC Power Supply, Level VI compliant
- AC Input Connector Type: IEC Male
- AC Requirements: 100V – 240V AC, 50 – 60 Hz
- DC Connector Type: XLR 4-Pin Locking Male (Neutrik P/N NC4MDM3-H)
- DC Requirements: 12 VDC ±5%, 1.5A
- Maximum Power Consumption: 18 Watts
- Operating Temperature Range: 32° to 104° Fahrenheit (0° to 40° Celsius)
- Storage Temperature Range: –40° to 176° Fahrenheit (–40° to 80° Celsius)
- Operating Humidity Range: 10% – 95%, non-condensing
Dimensions
- Width 15.01 in / 381.25 mm
- Height, Chassis Only 4.45 in / 112.94 mm
- Height, Including Rubber Feet 5.45 in / 138.44 mm
- Depth, Chassis Only 8.05 in / 204.5 mm
- Depth, Including Knob & Jack Protrusions 9.04 in / 229.58 mm
- Weight (unit only) 14.1 Lbs / 6.40 kg
