Sennheiser XSW 1-CI1-E - Wireless Instrument Set (863 - 865 MHz)
UK Delivery - From £5.99
Earn 199 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: 506998
You might also need
Product Description
Here's what Sennheiser say...
The Sennheiser XSW 1-CL1-E Instrument Set provides a solid wireless broadcast with up to 10 compatible channels in a stable UHF band within a large bandwidth. This is an all-in-one wireless system designed to be used for guitarists and bassists as it transmits a high quality powerful sound and an outstanding sound reproduction thanks to a robust and rugged instrument cable.
All of these wireless sets come with a stationary receiver that enables a quick setup and ease of handling. The set is completed with a compact bodypack transmitter, a power supply and two AA batteries so you can get started immediately. With integrated antennas and an antenna-switching diversity reception, this wireless instruments set offers automatic frequency management and synchronisation via a remote channel. The XSW 1-CL1-E Instrument Set features a frequency range in E (821-832 MHz, 863-865 MHz).
Features
-
Compact bodypack transmitter, rugged instrument cable
-
Antenna-switching diversity reception
-
Integrated antennas
-
Automatic frequency management and synchronization via remote channel for easy setup
-
Selectable UHF frequencies within a large bandwidth
-
Up to 10 compatible channels
Specification
- Receiver Dimensions : approx. 200 x 42 x 127 mm
- Bodypack transmitter Dimensions : approx. 71 x 96 x 28 mm
- THD, total harmonic distortion: ≤ 0.9%
- Weight approx. 340g (receiver), approx. 95g (transmitter)
- Signal-to-noise ratio: ≥ 103 dBA
- RF output power: 10 mW
- Switching bandwidth: up to 24 MHz
- Operating time approx. 10 hrs
- Modulation: Wideband FM
- Power supply - Receiver: 12 V DC nom. / 300 mA Transmitter: 2 AA size batteries, 1.5 V
- Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
- Housing: Rugged ABS housing
- Frequency: 8 frequency banks, each with up to 10 factory-preset channels
- Frequency range: A: 548-572 MHz, GB: 606-630 MHz B: 614-638 MHz C: 766-790 MHz D: 794-806 MHz E: 821-832 MHz, 863-865 MHz K: 925-937.5 MHz
- Sensitivity: < 3 μV at 52 dB(A)rms S/N
- SPL for peak deviation: 130 dB
- Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
- Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
- Input sensitivity: 1.5 mV / Pa
- AF frequency response Receiver: 50 to 16,000 Hz (–3 dB)
- Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range: 45 dB, adjustable in 5-dB steps
- Line / Mic level: 20 dB, switchable
- Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
- Receiver Principle: double superheterodyne
- Diversity principle: Antenna switching diversity via internal antennas
What's in the Box

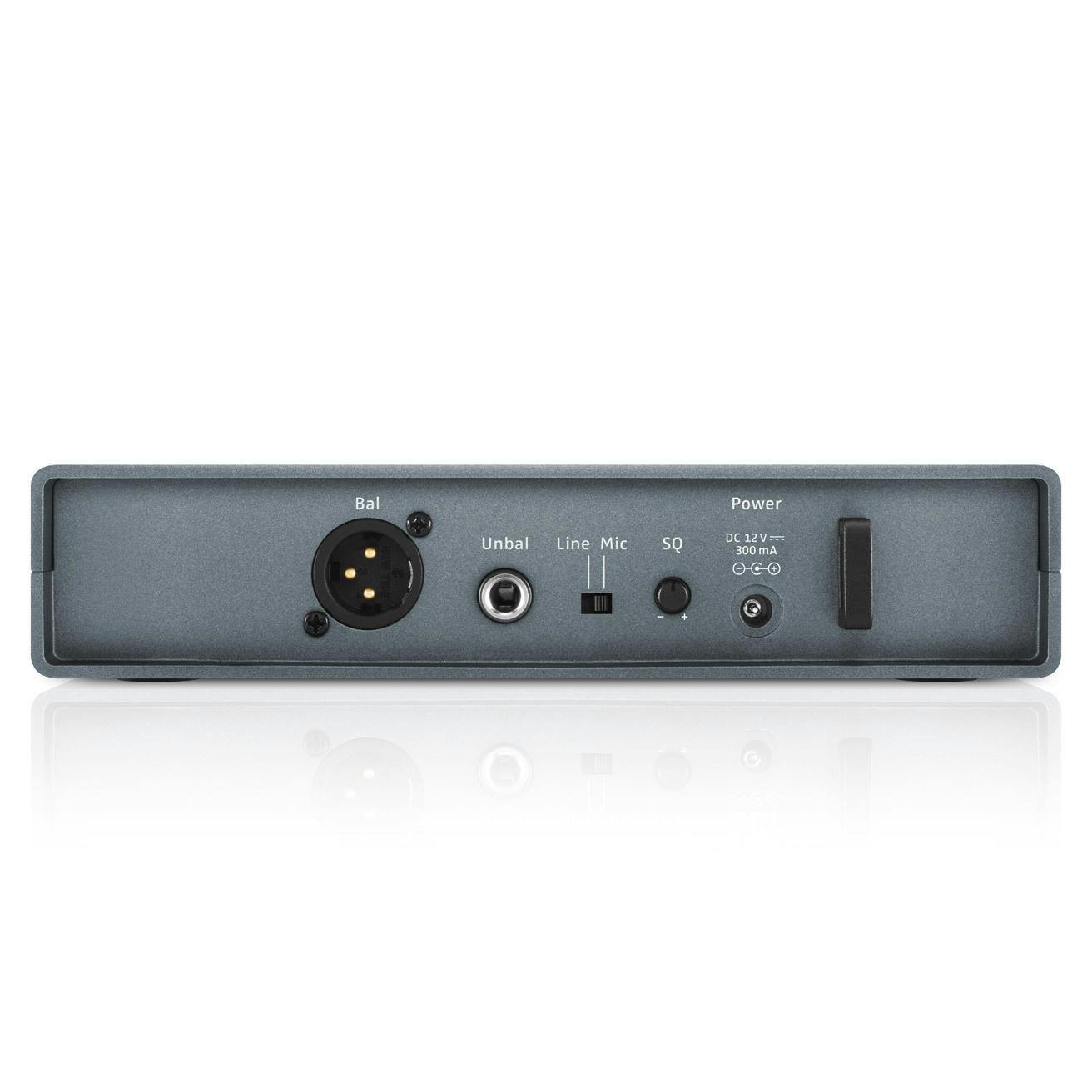

- 1 receiver EM-XSW 1
- 1 bodypack transmitter SK-XSW
- 1 instrument cable Cl1
- 1 power supply NT 12-5 CW
- 2 AA batteries
