Product Description
Based on the classic SYSTEM-100M modular synthesizer, the SYSTEM-500 is a fully analog recreation of one of the most revered electronic instruments of all time. Newly designed in Eurorack format, the SYSTEM-500 delivers the classic character and functionality of the original with the advantages of a modern instrument. Built in the USA and assembled in Japan, the SYSTEM-500 is made to exacting standards with top-quality components and solid controls. And it’s surprisingly affordable, turning the fantasy of finally owning this legendary instrument into reality.
Classic System. New Format.
The SYSTEM-500 consists of Eurorack format modules that you can mix and match in any combination to create the ultimate Roland modular synthesizer. Each module is completely analog and has been designed for maximum compatibility with the world of contemporary synthesizer and effects modules. The SYSTEM-500 is a compact, powerful system that opens up vast possibilities for sound design and musical exploration.

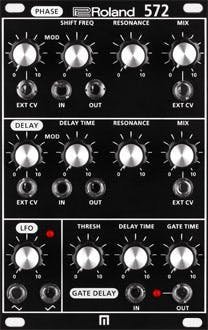

572 Phase Shifter + Delay + LFO
The 572 Phase Shifter, Delay and LFO is a time-based, multi-effects module. The 572 includes a five-stage phase shifter, analog audio delay, a control voltage gate delay, and an LFO. The phase shifter has panel controls for shift frequency and resonance amount that can vary from subtle to a deep, lush analog effect. Similarly, the audio delay has independent knob control of delay time and resonance (or feedback) for short chorus-like modulation delays. Both the phase shifter and delay can be modulated by the 572’s internal LFO or external CV signals and feature wet/dry effects mix controllable via the front panel or with CV.
The LFO section has a knob for controlling frequency and features both normal and inverted output jacks. The gate delay has knobs to control threshold, delay time, and gate time for modifying incoming gate signals from other modules.
Specifications
Controllers
[PHASE SHIFTER section]
- MODULATION knob
- SHIFT FREQUENCY knob
- RESONANCE knob
- MIX knob
[DELAY section]
- MODULATION knob
- TIME knob
- RESONANCE knob
- MIX knob
[LFO section]
- FREQUENCY knob
[GATE DELAY section]
- THRESHOLD knob
- DELAY TIME knob
- GATE TIME knob
Indicator
- LFO Indicator
- GATE DELAY OUT Indicator
Connectors
[PHASE SHIFTER section]
- MODULATION EXTERNAL CV jack: Miniature phone type
- IN jack: Miniature phone type
- OUT jack: Miniature phone type
- MIX EXTERNAL CV jack: Miniature phone type
[DELAY section]
- MODULATION EXTERNAL CV jack: Miniature phone type
- IN jack: Miniature phone type
- OUT jack: Miniature phone type
- MIX EXTERNAL CV jack: Miniature phone type
[LFO section]
- OUT jack: Miniature phone type
- INVERTED OUT jack: Miniature phone type
[GATE DELAY section]
- IN jack: Miniature phone type
- OUT jack: Miniature phone type
