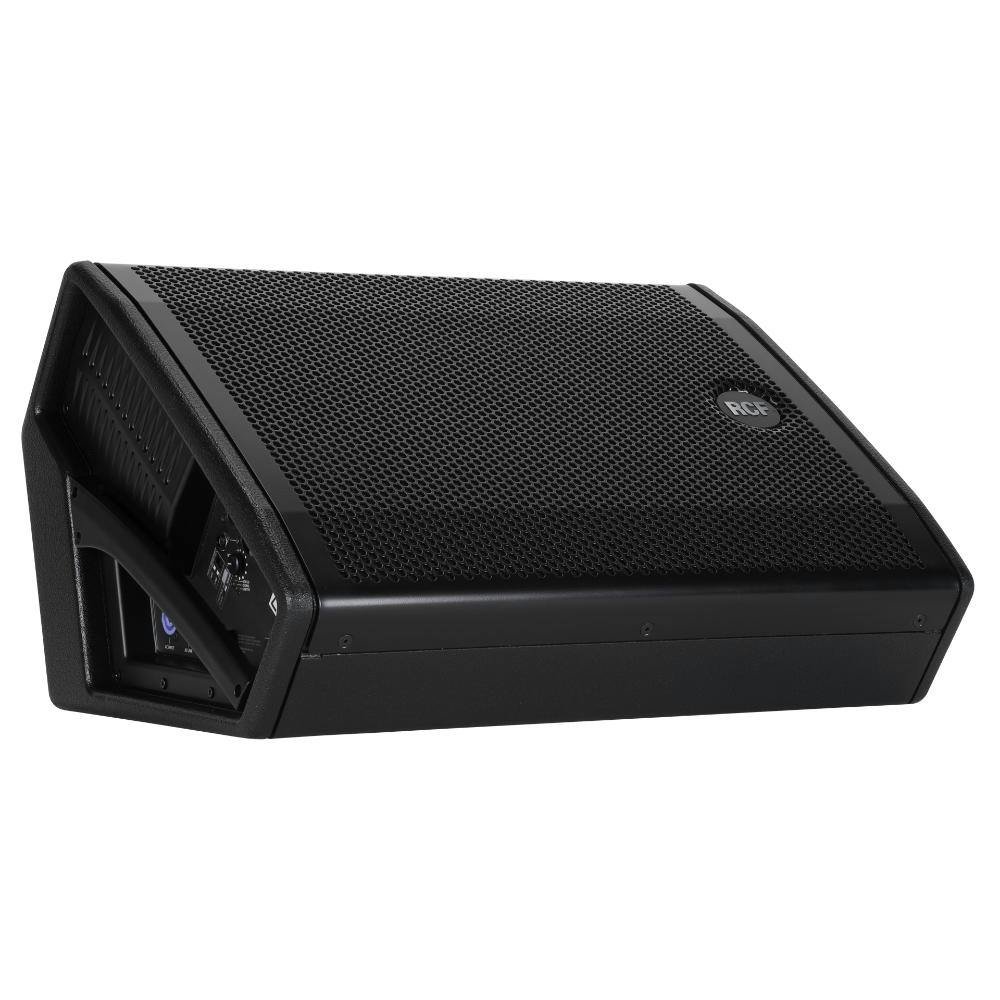

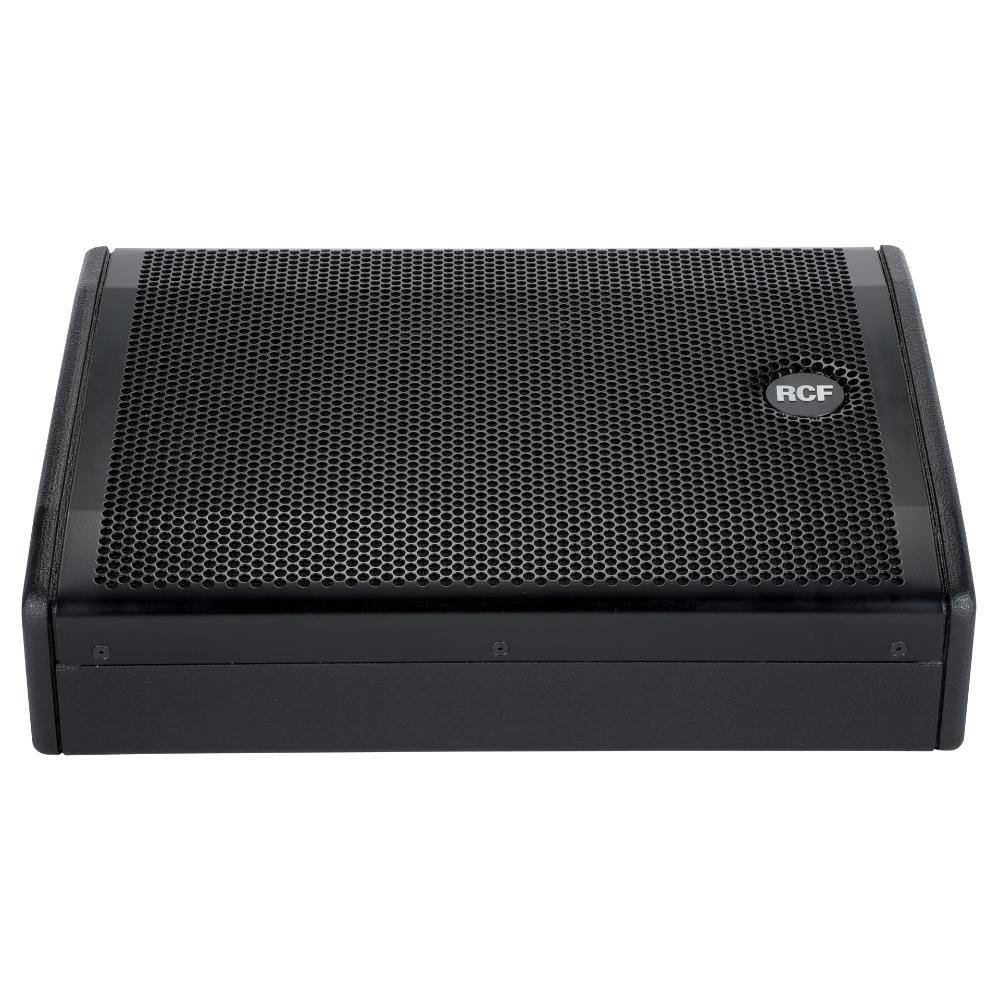

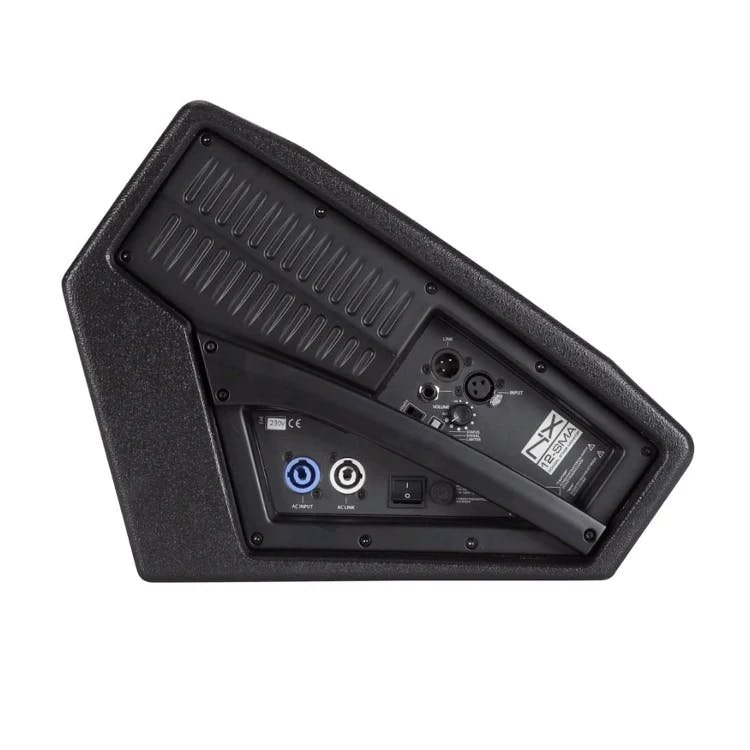

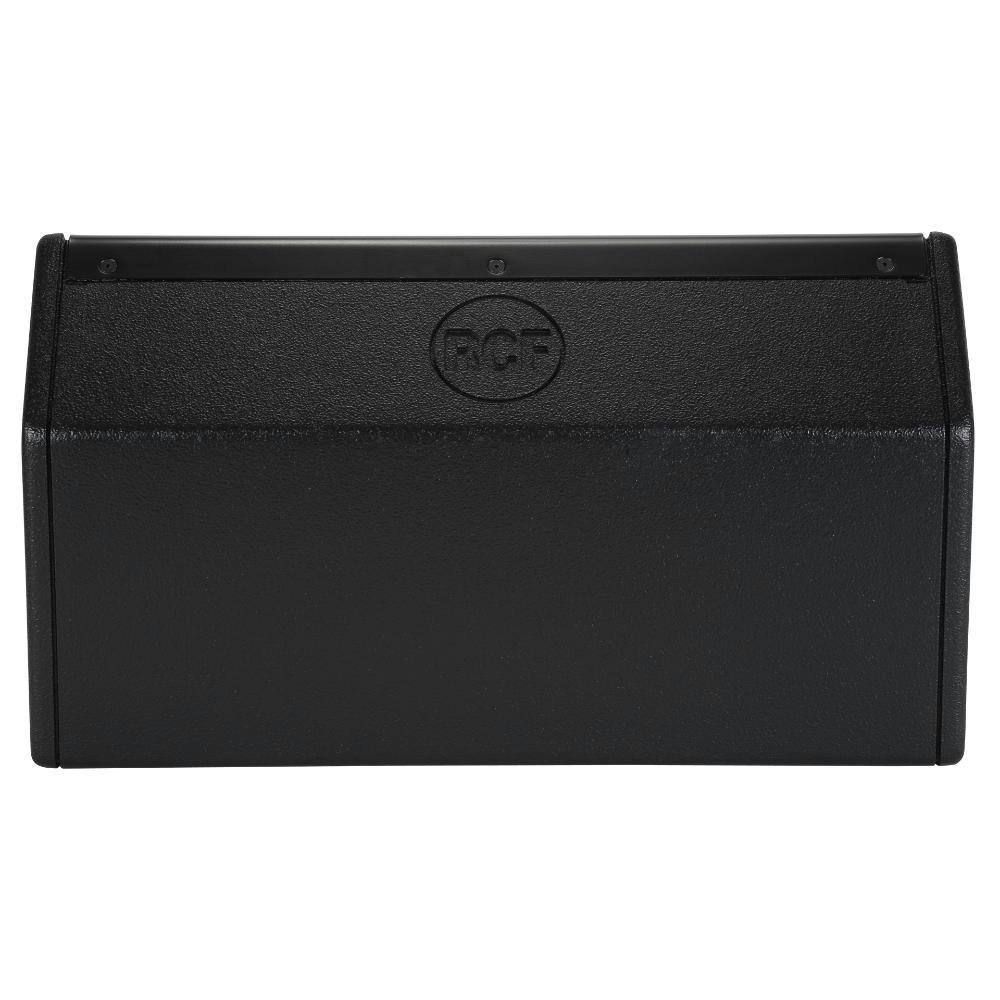

RCF NX 12-SMA Active Coaxial Stage Monitor
FREE UK Delivery
Earn 1269 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: 13000235
You might also need
Product Description
The NX 12-SMA is equipped with new high power 700 W digital amplifier and a newly designed 12” coaxial neodymium transducer that guarantees outstanding audio quality and definition as well as an extremely lightweight of the final system. The NX 12-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes: - Floor, for stage monitoring; - Free Field, for the use of the speakers as a stand-alone PA system. Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road. An ergonomic side handle, integrated with the input panel, is provided for an easier transport of the speaker.
Features
- 1400 Watt Peak, 700 Watt RMS digital bi-amplification
- 129 dB max spl
- 60° x 60° constant directivity horn
- 12" High power neodymium woofer, 2.5" voice coil
- 1.7" kapton dome, 1" exit, neodymium high frequency driver
- DSP processing, floor - fre field equalization, soft limiter and protection
- Combo xlr/jack input, xlr signal output
Specifications
- Frequency Response: 50 Hz ÷ 20000 Hz
- Max SPL @ 1m: 129 dB
- Horizontal coverage angle: 60°
- Vertical coverage angle: 60°
- Compression Driver: Coaxial 1.0'' neo, 1.75'' v.c
- Woofer: 12'' neo, 2.5'' v.c
- Input signal: bal/unbal
- Input connectors: XRL, Jack
- Output connectors: XLR
- Input sensitivity: +4 dBu
- Protections: RMS, HF
- Limiter: Soft Limiter
- Controls: Freefield, floor
- Total Power: 1400 W Peak, 700 W RMS
- High frequencies: 400 W Peak, 200 W RMS
- Low frequencies: 1000 W Peak, 500 W RMS
- Cooling: Convection
- Connections: Powercon IN/OUT
- CE marking: Yes
- Cabinet/Case Material: Baltic birch plywood
- Handles: 1 on side
- Pole mount/Cap: Yes
- Grille: Steel
- Colour: Black
- Height: 324 mm / 12.76 inches
- Width: 550 mm / 21.65 inches
- Depth: 417 mm / 16.42 inches
- Weight: 16.6 kg / 36.6 lbs
- Package Height: 604 mm / 23.78 inches
- Package Width: 504 mm / 19.84 inches
- Package Depth: 404 mm / 15.91 inches
- Package Weight: 20.2 kg / 44.53 lbs
