Palmer PPB 20 Press-Box - 252903-1511969780886.jpg
Palmer PPB 20 Press-Box - 252904-1511969791779.jpg
Palmer PPB 20 Press-Box - 252905-1511969794840.jpg

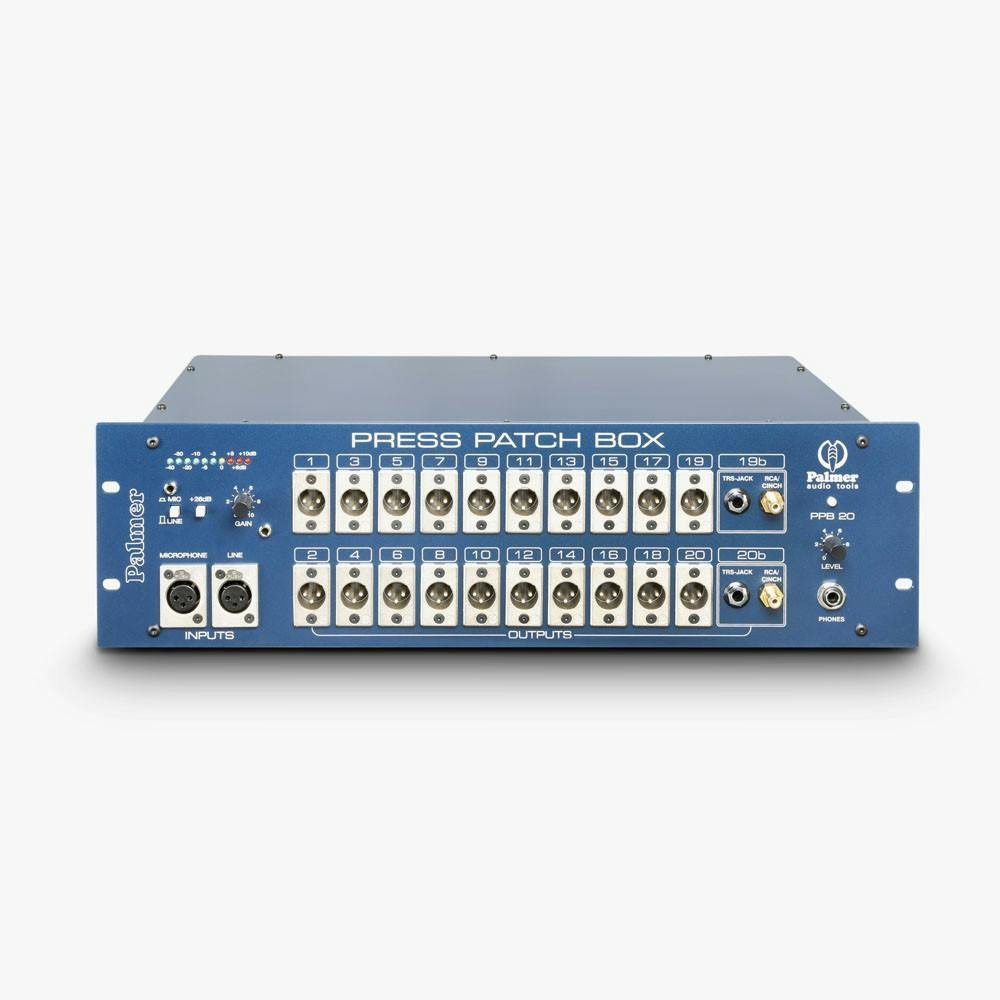

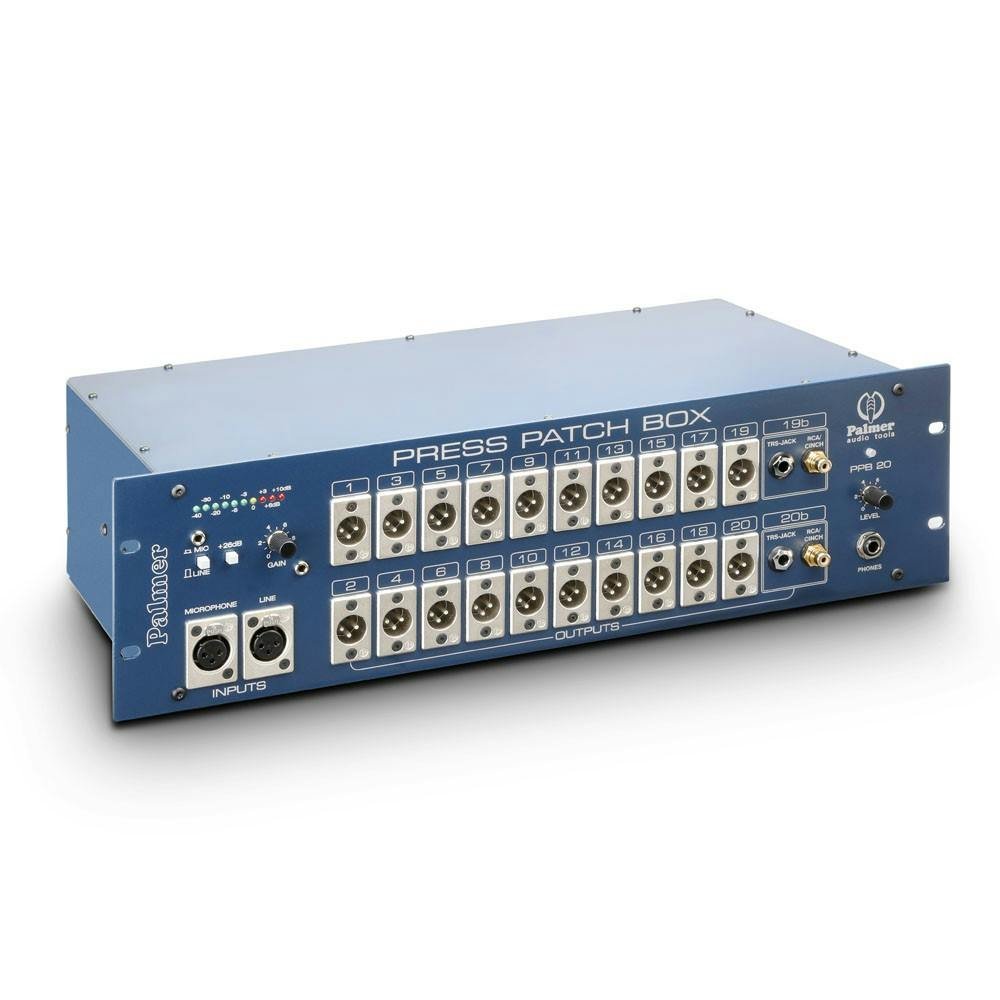

Palmer PPB 20 Press-Box

£1,499.00
Out of Stock

FREE UK Delivery

Free & Next Day delivery to most UK locations when spending over £199

Earn 1499 Loyalty Points

You'll get £14.99 to spend on your next order.
stock availability
0 at our Guildford Store
0 at our off-site Warehouse
Want to Click and Collect or try items at our Guildford Store?

The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.

The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.

Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.

If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.

Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.

If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.

Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.

SKU: PPB20

You might also need

Product Description

Here's what Palmer have to say about the Press Patch-Box 20:

A press patch box is a special audio signal splitter, which is developed for the specific requirements of a press conference. Via separate inputs, you can connect either a microphone or a line signal (mixer output).
A high-quality input amplifier with balanced earth-free input allows for a level adjustment over a wide range. 20 transformer-balanced XLR/m jacks with individual driver circuits in pairs are available as outputs for video cameras or other sound recording devices.
The nominal output level is +4 dBu at 600 ohms. In addition, channels 19 and 20 are equipped with TRS phone jacks for balanced or unbalanced signals and with RCA sockets (-10 dBu nominal level).
If more than 20 outputs are required, further PPB20 units can be cascaded via a BUS IN/OUT socket on the rear panel. A 10-fold LED chain and an adjustable headphone amplifier are used for signal monitoring (display range -40 to +10 dB, 0 dB display corresponds to +4 dBu output).
The PPB20 has a built-in shielded power pack. An additional DC input allows for battery operation or using an emergency power supply. PW4 is a suitable emergency power supply for two PPB20.

Specifications:

  • Product type: Splitter
  • Type: Mic & Line Split
  • Split type: 1 in 20
  • Channels: 1
  • Inputs: 1
  • Input connectors: XLR
  • Max. input level: Mic: 0 dBu, Line: +20 dB
  • Adjustable input: Yes
  • Number of split-outputs per canal: 20
  • Max. output level: + 20 dB
  • Output connectors: 6,3 mm Klinke, Cinch, XLR
  • Adjustable output: No
  • Transformer isolated outputs: Yes
  • Controls: Attenuator, Ground-Lift, Input Gain, Mic/Line, Phones Level
  • Indicators: Input Level, Power
  • Operating voltage: 115V/230V
  • Width: 480 mm
  • Depth: 200 mm
  • Height: 135 mm
  • Weight: 9.09 kg
