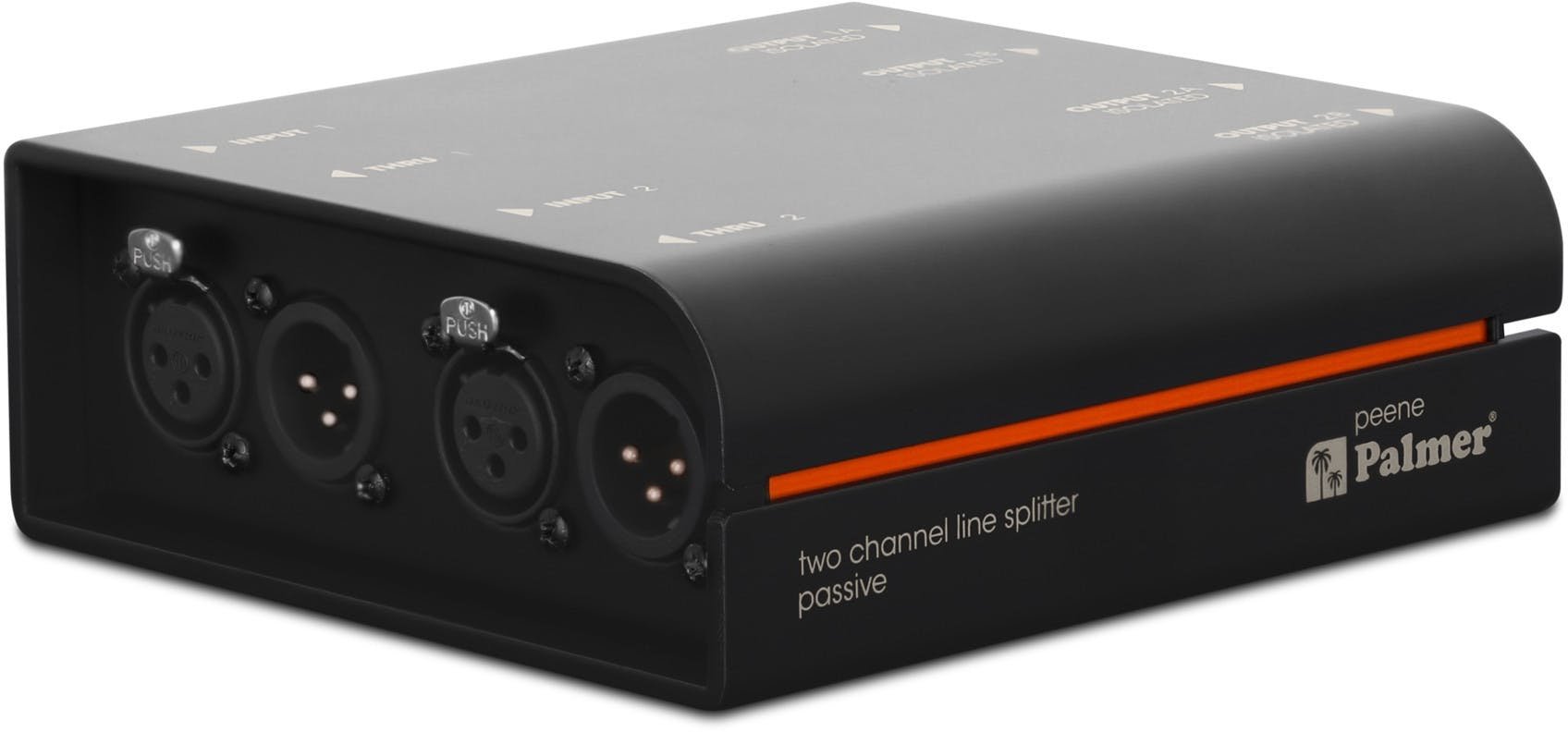

Palmer PEENE Passive 2-Channel Line Splitter
Passive 2-Channel Line Splitter
UK Delivery - From £2.99
Earn 104 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: PEENE
You might also need
Product Description
Do you want to send a line signal - stereo or dual mono - to multiple devices, without interference such as hum? Then the Palmer /Peene line splitter box is the right tool for you. It works on a purely passive basis with large isolation transformers, which can even handle high-level signals without distortion. So, for instance, you can send the stereo output signal from the mixer to several power amps, without any ground loops. The Palmer Peene also includes a ground-lift switch. In addition to the two transformer-isolated outputs, the Peene also directs the input signal on directly via a link out.
The Palmer Peene is everything you need to distribute line signals to several devices and is a reliable audio tool with ultra-simple handling and professional sound characteristics.
Key Features:
- Solid casing made of aluminium and steel:
- Study and hardwearing, built to stand the test of time… and musicians. - Extremely fail-safe, no power supply required:
- One less failure point, making sure there’s less to go wrong for the show. - Two inputs split to two outputs each
- Sometimes you just need to split a signal, this could be for many reasons including recording a live set, this is exactly that!
Specifications:
- Type: Passive
- Channels: 2

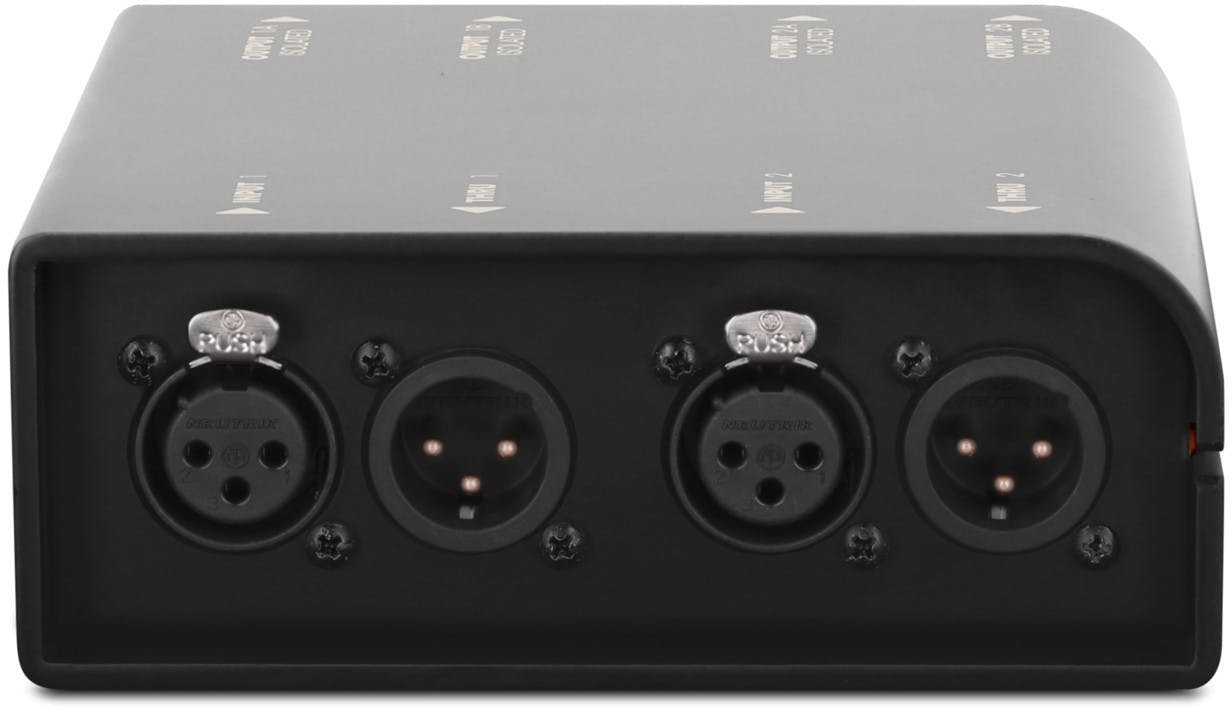

- Inputs:
- Number: 2
- Type: Unbalanced
- Connector: XLR - Outputs:
- Number: 4
- Type: Balanced
- Connector: XLR - THRU outputs per channel: 1
- Dimensions:
- Width: 50mm / 1.97“
- Length: 128mm / 5.04“
- Height: 140mm / 5.51“
- Weight: 805g / 1.77lbs
