Palmer ELDE Passive 2-Channel DI-Box
Passive 2-Channel DI-Box
UK Delivery - From £2.99
Earn 99 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: ELDE
You might also need
Product Description

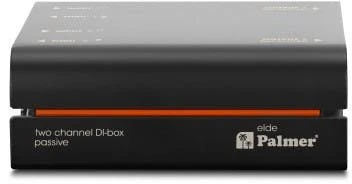

Are you looking to pick up the raw signal from a guitar, bass or keyboard without noise and tonal loss, even over long cable runs? That's exactly what the Palmer elde does - simply and reliably. Especially since the Elde is a classic passive DI box, and it even has a dual-channel design. This means you can use it for stereo signals as well as for two different instruments.

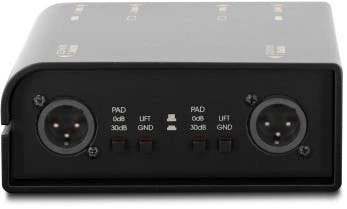

The inputs are each looped to a Thru Out, allowing the signal to be passed on to the guitar/bass amplifier. For very high level signals, each channel has its own pad switch (-30 dB), so you can also insert the Elde between the amplifier output and the loudspeaker. The output signals are balanced and with low impedance, so that they can withstand even longer cable runs without damage. Impedance conversion and balancing is done passively via a transformer, which also provides galvanic isolation. Each channel has its own ground lift switch to eliminate ground loops.
The Palmer Elde is a high-quality two-channel di-box that is extremely easy to use. Due to its passive design, it requires neither batteries nor phantom power. This makes it extremely reliable and failure-proof. With its robust aluminium/steel housing, the Palmer elde easily withstands rough everyday use on stage, and with its clean, unaltered sound, it also excels perfectly in the recording studio.
Key Features:
- Solid casing made of aluminium and steel:
- Study and hardwearing, built to stand the test of time… and musicians. - Extremely fail-safe, no power supply required:
- One less failure point, making sure there’s less to go wrong for the show. - Two-channel model for stereo signals or two instruments:
- Handle stereo effects, keyboards or other instruments with one box.
Specifications:
- Type: Passive
- Channels: 2
- Inputs:
- Number: 2
- Type: Unbalanced
- Connector: 1/4" (6.3mm) Jack - Outputs:
- Number: 2
- Type: Balanced
- Connector: XLR - THRU outputs per channel: 1
- Pad: 0dB / 30dB
- Frequency Response: 5 Hz – 80 kHz
- Dimensions:
- Width: 50mm / 1.97“
- Length: 128mm / 5.04“
- Height: 140mm / 5.51“
- Weight: 660g / 1.46lbs - Power:
- Power required:
- Power rating:
