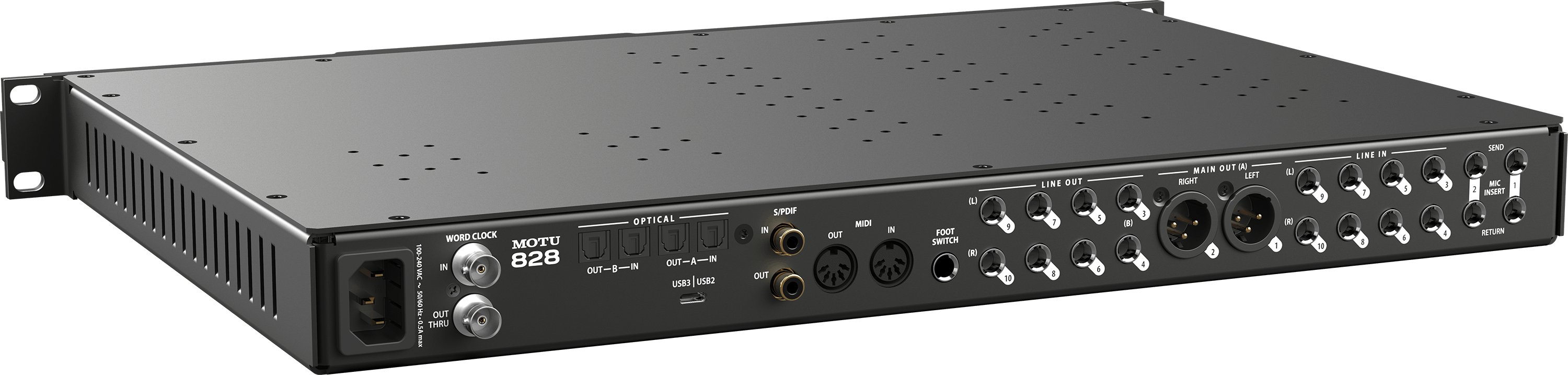

MOTU 828 28 x 32 USB3 Audio Interface
USB-C Rack mount USB-C Audio Interface
FREE UK Delivery
Earn 999 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: 1349
You might also need
Product Description
MOTU have some exceptional users under their belt over the years, including Liam Howlett of The Prodigy in his live rig, Walter Murphy the composer for Family Guy and they’ve earned the trust of live engineers across the industry.
MOTU now bring a powerhouse to their collection, the 828 interface, with built in DSP effects and a virtual mixer, this helps save your computers CPU by letting your interface handle a lot of the processing. It’s ultra low latency is amazing for being able to record a dry signal of your guitar, but also monitoring with effects and amp sims from your PC and recording that result.
iPhones and iPads can now also work with the CueMix 5 over WiFi using the CueMix 5 control. Great if you’re recording an artists as they’ll be able to adjust their own mix to what they need and want to help them give their best performance.
Key Features:
- 60 simultaneous audio channels:
28 inputs and 32 outputs, including two combo XLR/TRS mic/line/hi-Z guitar inputs with send/return inserts, 8 TRS analogue (line-level) in/out, separate main outs on XLR jacks, two banks of 8-channel optical I/O, stereo RCA S/PDIF digital I/O, and two front-panel headphone outputs. - Foot switch input:
Connect a standard foot pedal switch (sold separately) for hands-free punch-in and punch-out while recording. Or map the pedal to any keystroke function in your host software. - DSP mixing and effects processing:
Flexible 24-input digital mixer with 8 stereo busses and DSP effects, including reverb, 4-band EQ, gate and compression, when used with CueMix 5 for iOS this can also be a fantastic unit for guitar re-amping when also combined with the ultra low latency round trip.
Specifications:
- Sample rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz
- Inputs:
- Mic/Line: 2x XLR/TRS Combo Jacks
- Analogue Inputs: 8x 1/4” TRS Jacks, 2x 1/4" TRS returns
- Digital Inputs: 2x ADAT (16 channels each) - Outputs:
- Main Output: 2x XLR
- Analogue Outputs: 8x 1/4” TRS Jacks, 2x 1/4" TRS Send
- Headphones: 2x 1/4" TRS Stereo Jack
- Digital: 2x ADAT (16 channels each) - Computer I/O: USB-C 3.2 Gen 1
- System Requirements:
- RAM: 4GB minimum, 8GB or more recommended
- Memory: 500GB recommended for recording
- Ports: Highspeed USB-C Connection
- Operating system: MacOS 10.15, Windows 10 or later. - Included Software:
- CuMix 5
- MOTU Performer Lite
- Ableton Live Lite
- 6Gb of Loops and sounds from Big Fish Audio, LucidSamples, Loopmasters and MOTU. - Dimensions:
- Width: 48.26cm / 19”
- Depth: 31.1cm / 12.25”
- Height: 4.44cm / 1.75” (1U)
- Weight: 5kgs / 11lbs
