Moog MAVIS Monophonic Semi-Modular Analogue Synthesizer
Massive Moog sound in a build-it-yourself synth
FREE UK Delivery
Earn 687 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: MOD-WK-MAVIS-U
You might also need
Product Description

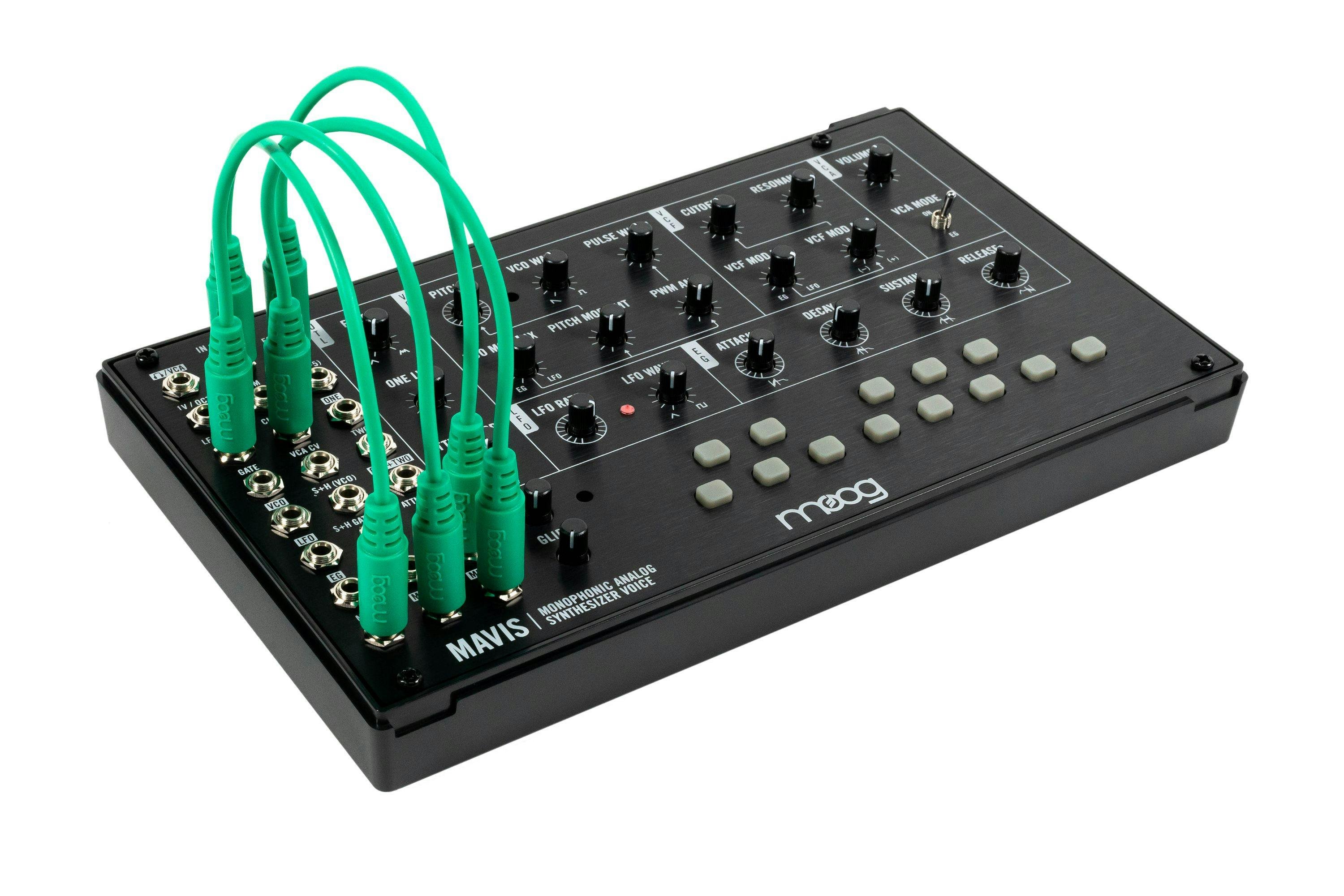

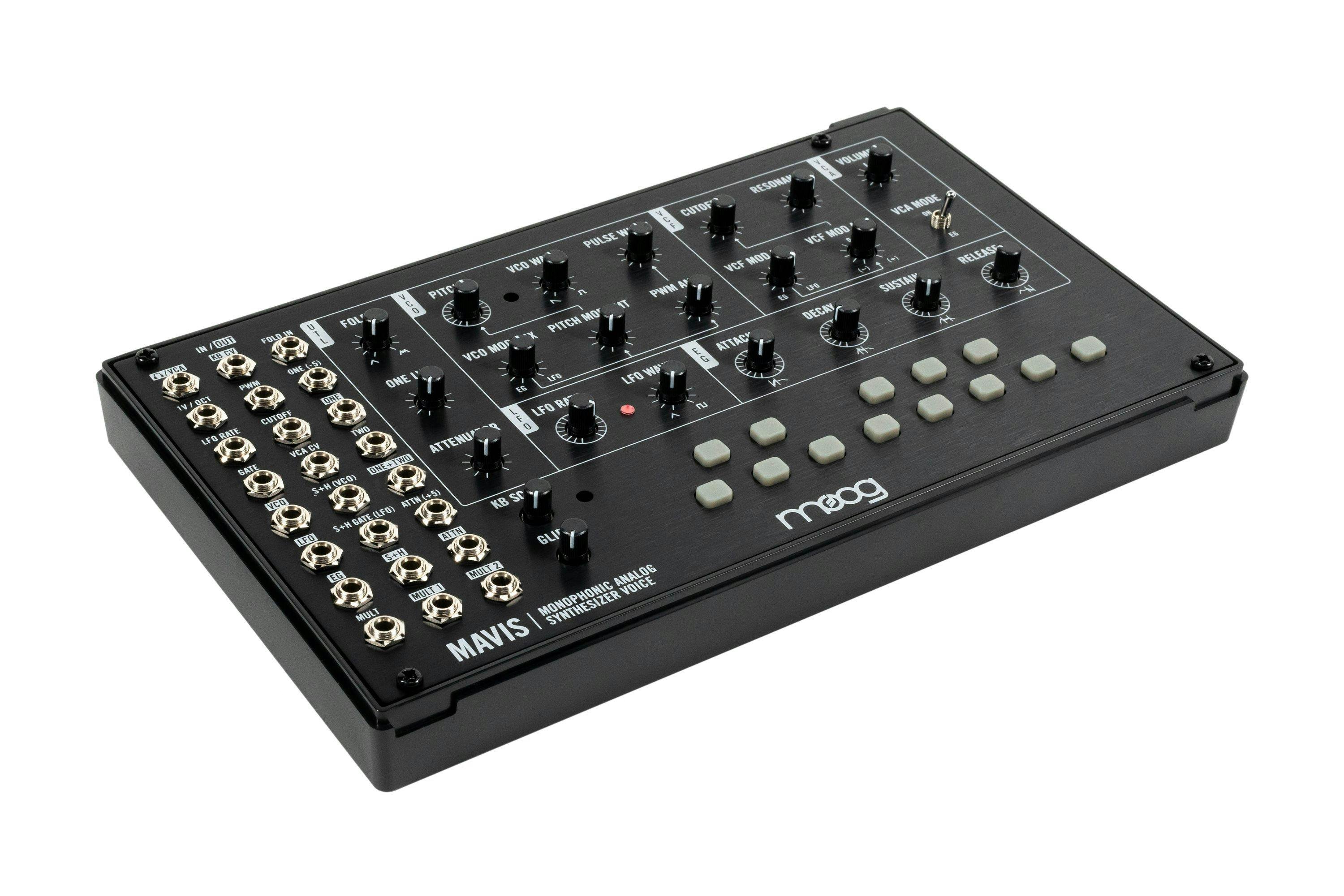

The Moog Mavis is a build-it-yourself analogue synth kit that offers the massive sound you expect from a Moog in a compact format jam packed with features and options.
Mavis features Moog's iconic oscillator and filter circuits alongside a diode wavefolder - which is a first for a Moog instrument! Mavis combines traditional subtractive synthesis with additive wavefolding creating a powerful yet affordable Moog synth that makes learning synthesis or expanding your existing setup simple for anyone.
Through building it yourself, you can take a step closer to the circuits at the heart of Mavis and come away with a Moog analogue synthesizer that is uniquely yours! No soldering required and it can all be completed in no time at all by users of any skill level or experience!
Key Features
- Built-in keyboard with Glide and KB scaling
- Full Range Analog Oscillator with Pulse Width Modulation
- Voltage Controlled Filter
- Audio Rate LFO and 4-Stage Envelope Generator
- Wavefolding and Modular Utilities
- Patchable Sample and Hold (S+H) circuit

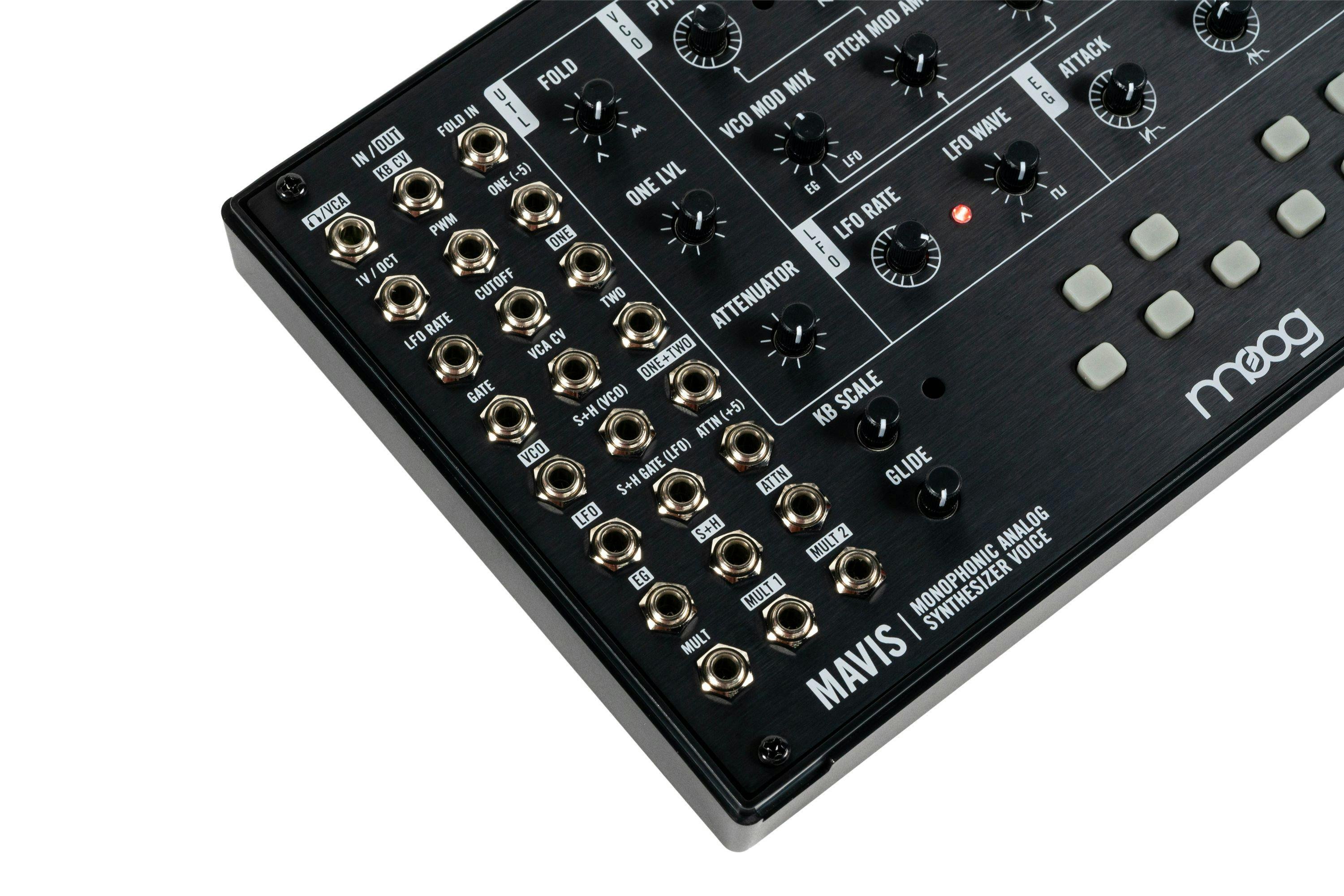

- 24-Point Patch Bay
- Protective Cover
New to Moog: Wavefolding capabilities
Mavis features a first for Moog - a wavefolding circuit, which allows for new additive synthesis options alongside traditional subtractive synthesis that Moog are renowned for. A wide variety of modular utilities are available such as attenuators, offsets, mults and a flexible DC-coupled mixer.
Features Galore
A Voltage Controllable Oscillator with PWM (Pulse Width Modulation), Waveform mixing, and Mod Source mixing, delivers rich harmonic character and motion. Sculpt your sound with the -24-dB Moog Low Pass Ladder Filter, delivering the sonic power behind the distinct sounds of Moog basslines and leads. Mavis uses crossfaders in its modulation routing instead of switches, allowing you to blend between a variable shape LFO and four stage envelope generators for interesting and unusual sonic possibilities.
Assessible for Everyone
Users of all skills levels can quickly assemble their own analogue synth in no time at all! Mavis semi-modular design and 1-octave keyboard will get you started making sound immediately and presents a perfect option for first time users and experienced synthesists alike!
Use Mavis standalone or integrate into your existing setup
Mavis is capable of operating as a standalone instrument but with its patchable modular utilities, it can do a lot more! You can easily remove Mavis from its case to turn it into a 24-point CV controllable module (44hp) ready to be added to your Eurorack setup or alongside any of Moog's other semi-modular instruments!

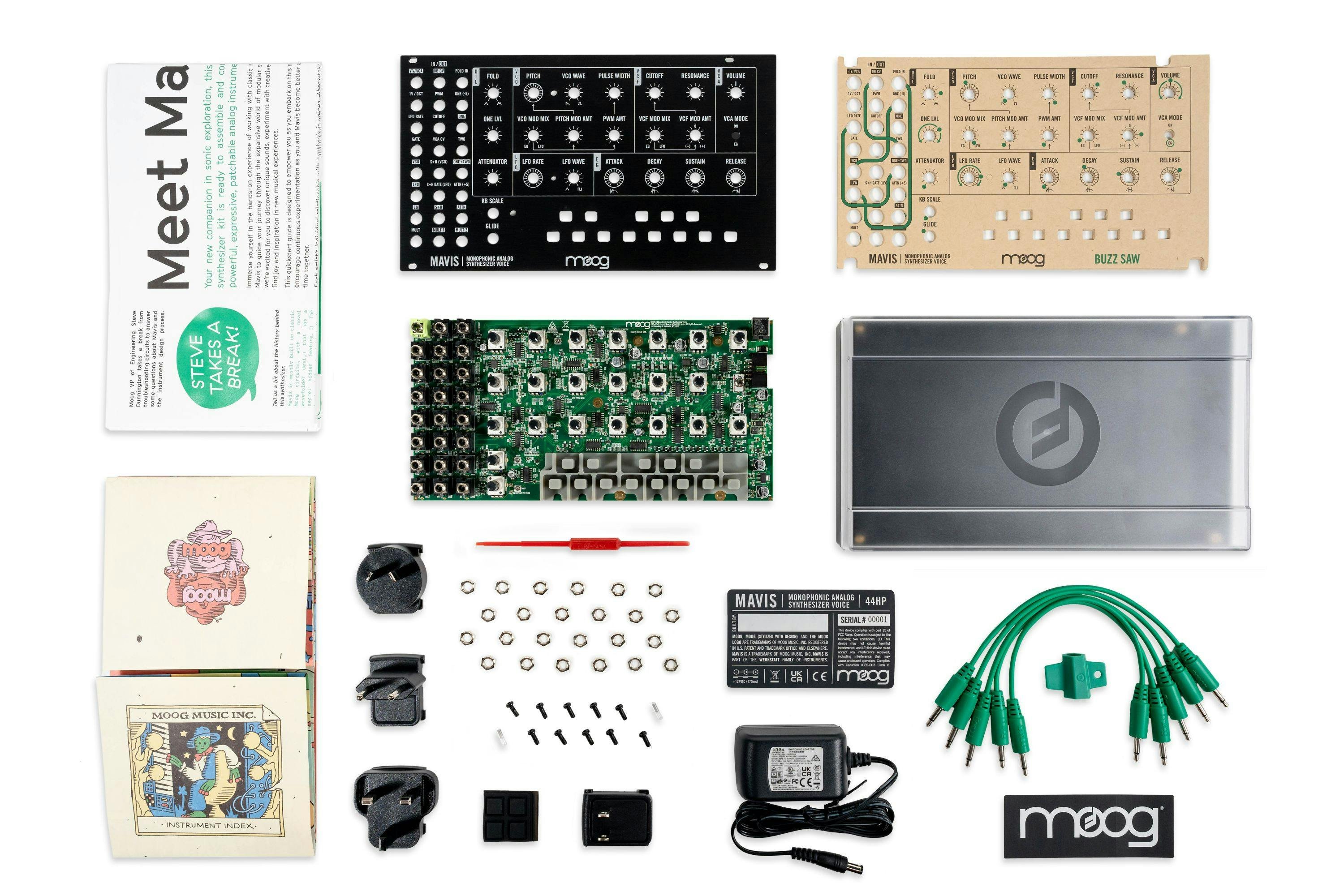

Included in the Box
- Mavis PCB
- Front Panel
- Bottom Enclosure
- Protective Cover
- Calibration Tool
- Nut Driver
- Fastener Kit
- Power Supply
- Package of 3.5mm cables (6” x5)
- Assembly Instructions / Quickstart Guide
- Patch Overlays
- Product Catalogue
- Registration Card
Technical Specifications
- Operate standalone or as 44hp Eurorack module Analog Voltage Controlled Oscillator (Mixable Saw/Square)
- Analog –24dB Moog Low Pass Ladder Filter
- 4-stage Analog EG (Envelope Generator)
- Diode Wavefolder
- Analog LFO (Mixable Triangle / Square)
- Pulse Width Modulation
- Modular Utilities (Attenuators, Offsets, Mults, and a flexible DC-Coupled Mixer)
- Sample & Hold
- Analog Voltage Controlled Amplifier
- 24-Point Patch Bay (3.5 mm)
- 1 Octave Keyboard w/ Glide and Scaling
- Protective Cover Included
- Patch Cables Included
- 3.5mm Output
Weight & Dimensions (Product Only)
- Weight (kg) .43 kg
- Dimensions (cm) 22.86cm x 13.34cm x 3.81cm
Weight & Dimensions (Product in Box)
- Weight (kg) 1.5 kg
- Dimensions (cm) 31.13cm x 19.05cm x 17.78cm
