LD Systems MAUI 11 G2 PA System in Black

The LD Systems Maui 11 G2 is a portable 1000-watt PA that can be easily carried in one go. Just sling the padded bag over your shoulder, grab the Sub in one hand and head out to your gig. You’ll even have a hand free for a mic stand or guitar!

With a built in Limiter, EQ and Compressor, you can be sure you’ll always sound your best. Three 6.5" woofers, eight 3" fullrange transducers and dual 1" neodymium compression drivers will give you a truly balanced sound.

The 4 channel mixer will allow you to hook up a mic, a stereo line in and a mono line in, as well as a dedicated channel for an MP3 or a Bluetooth connection. This PA is great for a duo or even trio playing small to medium-sized venues.

Here’s what LD Systems say about the Maui 11 G2:

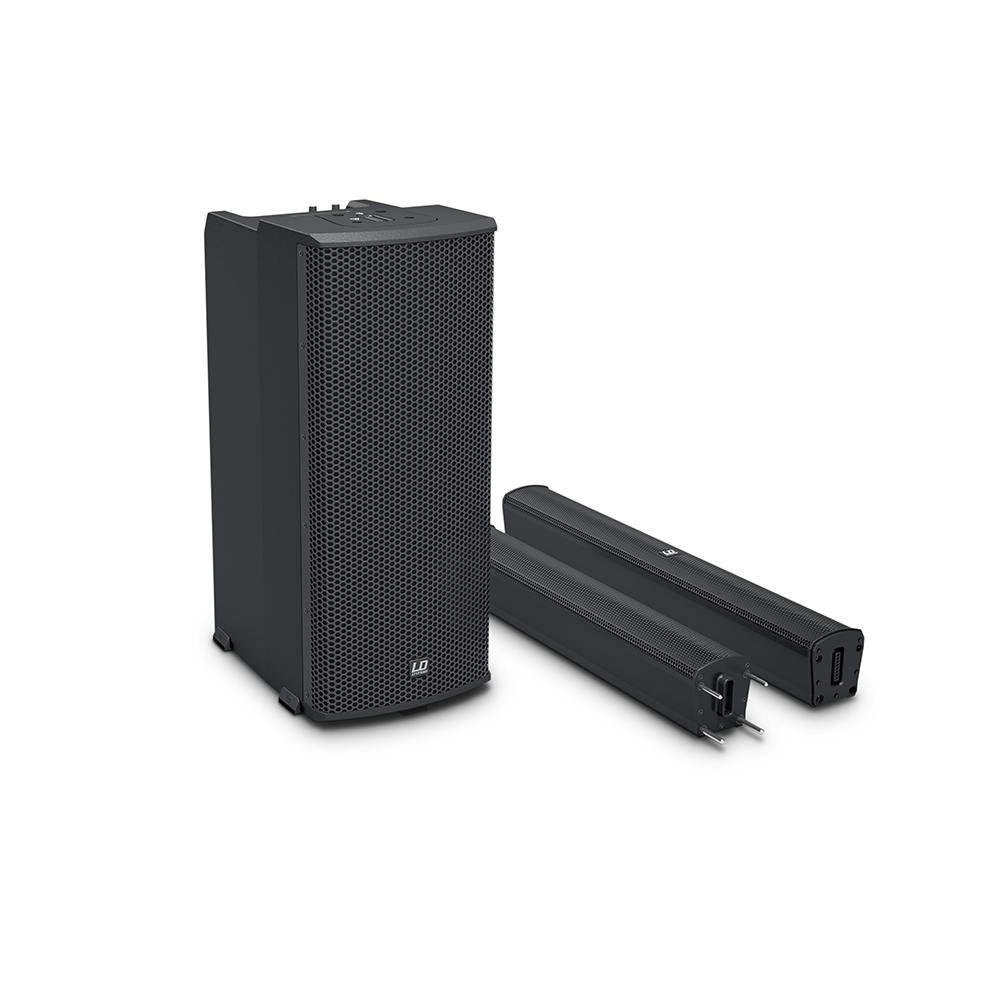

A complete sound system to carry in one go along with your instrument: that’s the MAUI 11 G2. Simply put the two column elements in the padded shoulder bag, grab the subwoofer with one hand and your guitar or keyboard with the other. Assembling the all-in-one PA and monitoring system with its custom plug-and-play multipin connectors is just as easy. The MAUI 11 G2 delivers unmatched audio quality and astonishing coverage from a compact, elegant package. It has been engineered with years of experience in column systems to provide a user-friendly solution for small to medium gigs and installations.

The MAUI 11 G2 sports a complement of three 6.5" woofers, eight 3" fullrange transducers and dual 1" neodymium compression drivers. Producing a punchy low end, balanced midrange and silky smooth highs, they are driven by a lightweight Class D amplifier with a massive 1,000 watts peak power. LD Systems’ DynX® DSP technology ensures top performance and distortion-free audio at all times. It includes a multiband limiter to prevent clipping, EQ, a compressor and a 3-way crossover for perfect time alignment.

The line array configuration of the MAUI 11 G2 results in extended coverage, high feedback resistance and extra wide dispersion that lets you perform without the need for separate monitors. The high frequency drivers’ waveguide has been designed using BEM, the numerical modeling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a uniform pattern so your audience hears you the same from front to back row.

The MAUI 11 G2 puts you in control with a built-in 4-channel mixer, system presets for mono or stereo setup and Bluetooth® audio streaming. If you’re a singer-songwriter, solo entertainer or DJ you’ll appreciate extraordinary audio performance and convenient portability. The column and sub can be placed apart making the system highly flexible and a great choice for installed sound applications, as well. With a selection of smart transport accessories and dedicated mounting hardware the MAUI 11 G2 is a comprehensive solution down to the smallest details.

Features

• Suitable for small to medium gigs and installations
• Consists of 3 x 6.5" woofers, 8 x 3" full-range transducers & dual 1" neodymium compression drivers
• Lightweight class D amplifier with 1000w peak power
• LD systems' Dynx DSP technology ensures top performance and distortion-free audio
• Includes multi-band limiter to prevent clipping
• Extended coverage, high feedback resistance and extra wide dispersion
• Column and sub can be separated

Specifications

General

• Product Type: PA Complete Systems
• Type: Active
• Colour: Black
• Max SPL (Peak): 124dB
• Frequency Response: 50 - 20000Hz
• Dispersion (H x V): 120 x 20
• Overall Height: 2030 mm
• Weight: 24.9 kg

Woofer Characteristics

• Low/Mid Driver Dimensions: 3 x 6.5" (3 x 165.1 mm)
• Woofer Magnet: Ferrite
• Woofer Brand: Custom Made
• Woofer Voice Coil: 1.5" (38.1 mm)
• Cabinet Construction: Vented
• Cabinet Material: 15 mm Plywood
• Cabinet Surface: Texture Paint
• Subwoofer Width: 285 mm
• Subwoofer Height: 650 mm
• Subwoofer Depth: 373 mm
• Subwoofer Weight: 17.8 kg

Mid/Hi system

• Mid-range Size: 8 x 3" ( 8 x 76.2 mm)
• Mid-range Magnet: Ferrite
• Mid-range Brand: Custom Made
• Mid-range Voice Coil: 1" (25.4 mm)
• Horn: Waveguide
• Tweeter Dimensions: 2 x 1" (25.44 mm)
• Tweeter Magnet: Neodymium
• Tweeter Brand: Custom Made
• Tweeter Voice Coil: 1" (25.4 mm)
• Loudspeaker Inputs: 1
• Speaker Input Connections: Custom Made Multipin
• Cabinet Construction Mid/High: Closed
• Mid/Hi System Cabinet Material: Aluminium
• Mid/Hi System Cabinet Surface: HD Coating
• Mid/Hi System Width: 96 mm
• Mid/Hi System Height: 620 / 730 mm
• Mid/Hi System Depth: 104 mm
• Mid/Hi System Weight: 5.5 / 2.5 kg

Amplifier Module (Integrated In Subwoofer)

• Amplifier: Class D
• Amplifier Output System (RMS): 500w
• Amplifier Output System (Peak): 1000w
• Protection Circuits: Thermal Overload, Short Circuit, DC Protection, Multiband Limiter
• Cooling: Convection
• Operating Temperature: 0 - 40C
• Humidity Range: 0 - 80 Rel. (Non Condensing)C

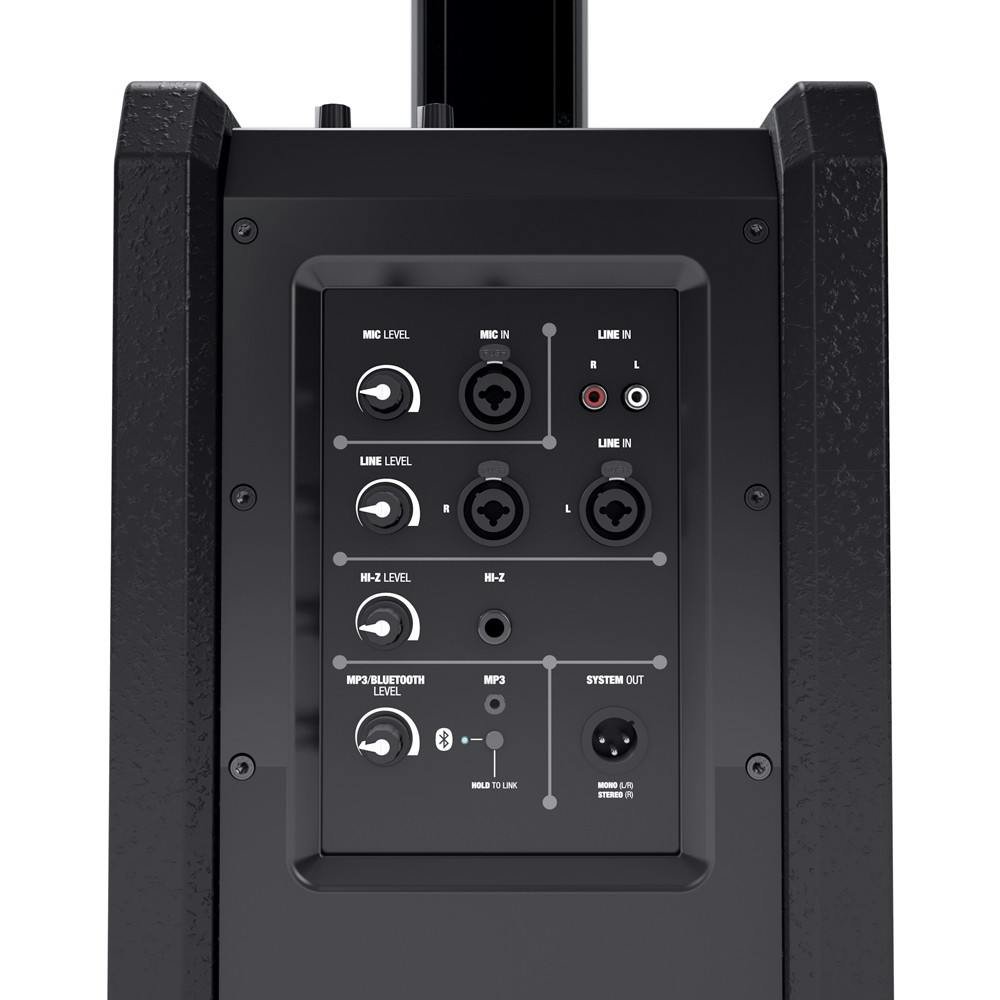

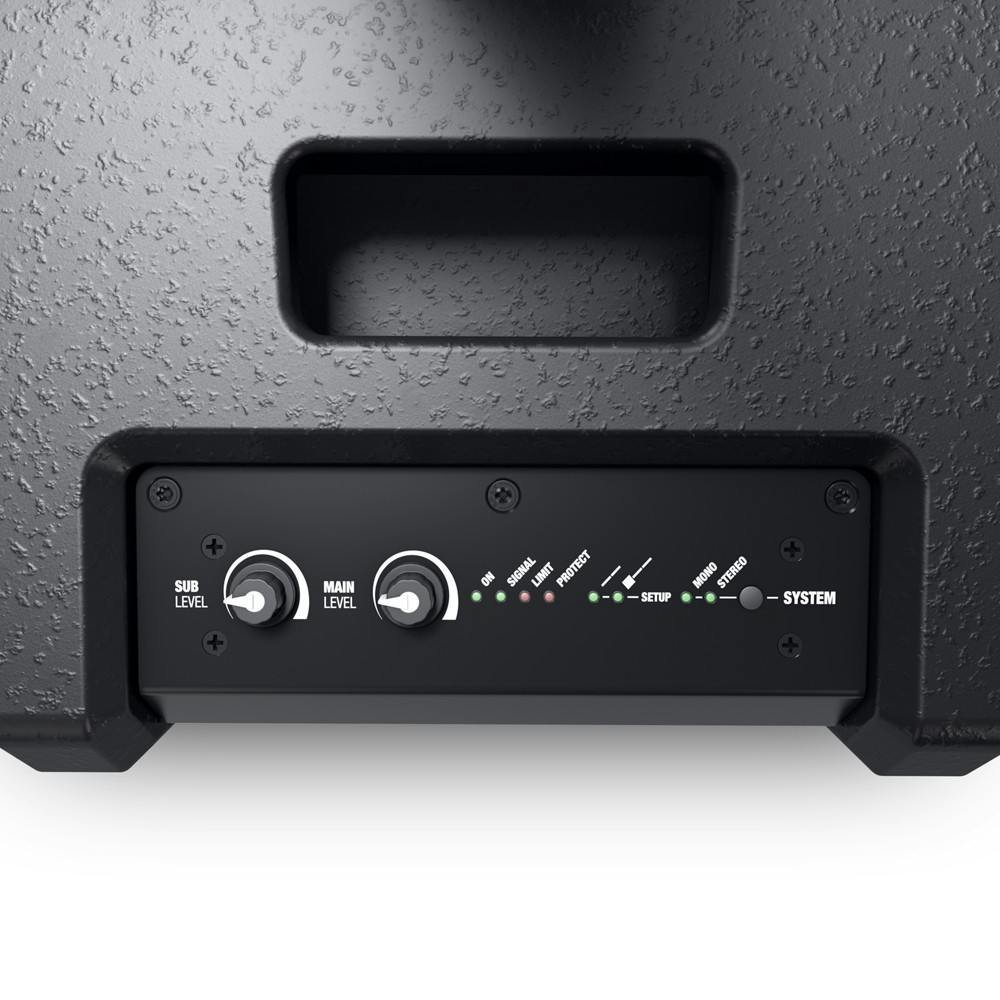

• Controls: MP3/Bluetooth Level, Bluetooth Button, Line Level, Mono/Stereo Switch, Main Level, Sub level, Power, Hi-Z Level
• Indicators: Signal, On, Limit, Setup, Mono, Stereo, Protect (Protection Circuit Engaged)
• Power Connector: IEC (Power Cable Included)
• Operating Voltage: 100 - 120V / 50 - 60Hz Oder 200 - 240 V / 50 - 60Hz (Automatic Conversion)
• Power Consumption: Off: 0w, On: 11w, Max: 600w
• Line Inputs: 2 x Stereo
• Line Input Connectors: XLR/6.3 mm Jack, RCA
• Line Outputs: 1 x Direct Out
• Line Output Connectors: XLR
• Mic Inputs: 1 x XLR/6.3 mm Jack
• MP3 Inputs: 1
• MP3 Input Connectors: 3.5 mm Jack
• Hi-Z Input: 1
• Hi-Z Input Connectors: 6.3 mm jack
• Loudspeaker Outputs: 1
• Speaker Output Connections: Custom Made Multipin

DSP Characteristics

• Bit Depth AD/DA Converter: 24bit
• Internal Sampling Frequency: 48kHz
• Signal/Noise Ratio: 100dB
