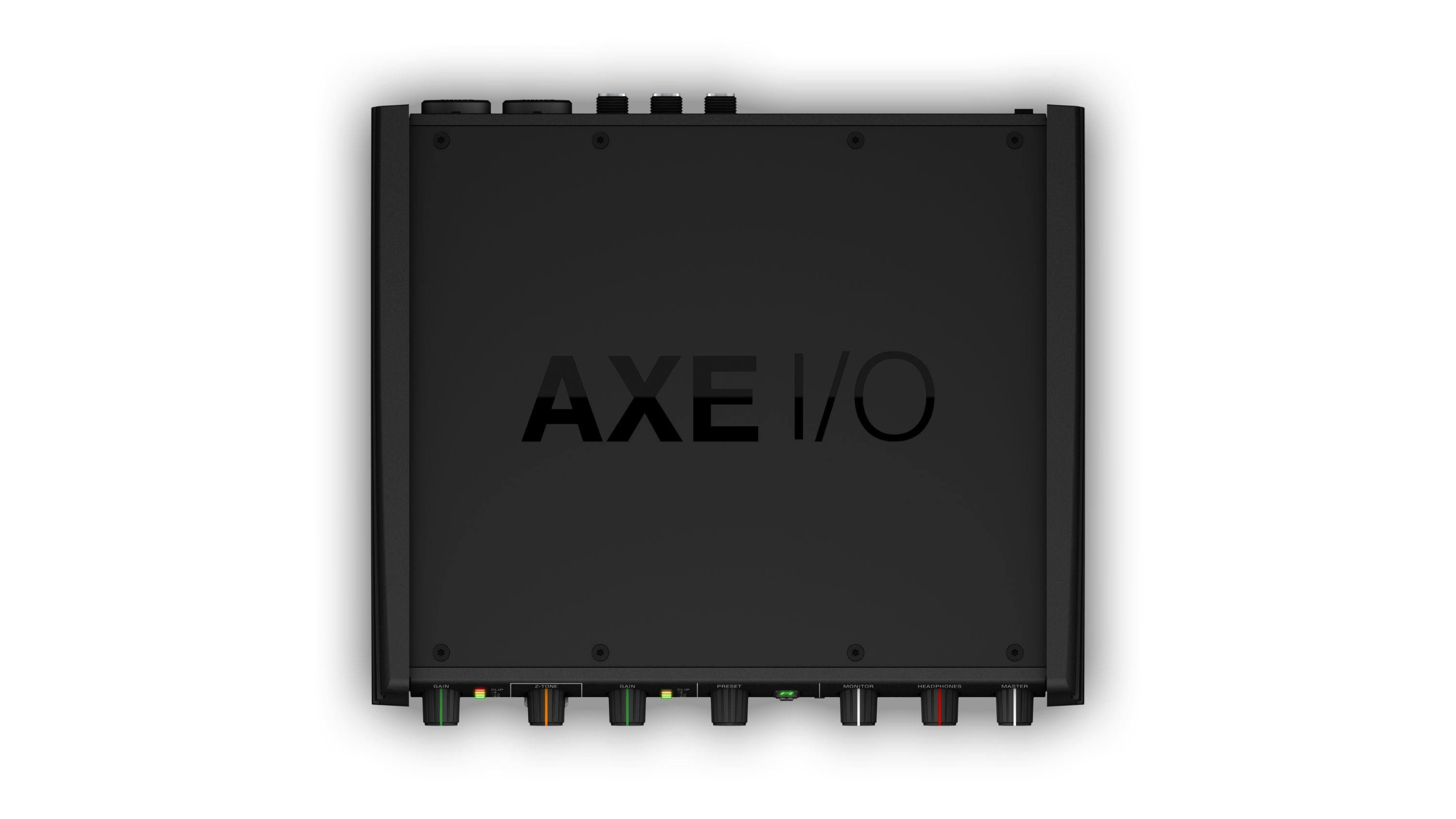

IK Multimedia AXE I/O USB Audio Interface with Advanced Guitar Tone Shaping
Studio-class interface perfect for guitarists
FREE UK Delivery
Earn 283 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: IP-INT-AXEIO-IN
You might also need
Product Description
IK Multimedia specialise in technology, from their cutting-edge synths to their hugely popular software releases. For 2019, they’ve introduced the Axe I/O to the family. This stunning audio interface offers new levels of versatility, while being squarely aimed at the tone-wary guitarist. Built-in tuner, amplifier out, active & passive inputs and even a copy of Amplitube 4 Deluxe thrown in; it doesn’t get much better than this.
Key features
- 2 in/5 out high-end USB audio interface
- Discrete Class A microphone preamps
- 24 bit/192 kHz maximum sample rate
- Ultra-flat and extended frequency response
- 117 dB dynamic range
- Very low latency
- Ultra-low jitter clock for transparent, world class sound
- Top of the line converters
- High-current balanced outputs
- High-current professional headphone amplifier
Game-changing guitar recording
The Pure circuit delivers completely transparent and ultra-accurate sound, with 117 dB (A) dynamic range. JFET adds subtle harmonic enhancement for a rounder, warmer sound without sacrificing dynamic range.
Active bypasses unneeded stages for completely transparent sound when used with active pickups. While patent-pending Z-Tone variable impedance Hi-Z input re-shapes the sound of instruments to dramatically reshape the tone of your guitar, or precisely match the impedance of a virtual gear model.
Powerful features
Front-panel Amp output for easy re-amping, with no need for a direct box and no ground loops or noise. The front-panel 1/4” return lets you add external pedal FX without the need to re-wire rear inputs.
You’ve also got a built-in tuner to keep your instrument in tune throughout recording sessions – handy eh? Finally, 2 inputs for expression pedals or single/switches gives you real-time control over virtual rigs.
Includes over £1000 worth of software
Over 140 ultrarealistic models of iconic guitar amps, cabs, FX and more thanks to AmpliTube 4 Deluxe’s expansive library. You’ve also got 10 T-RackS Singles for mixing instruments, including EQ, compressors, reverb, delays, mic modelling and more.
Finally, you’ll get a copy of Ableton’s Live 10 Lite recording software, a go-to in the industry among live performers and electronic music artists.
In the Box
- USB A-Type to USB B-Type connection cable (1.5m/4.32ft)
- DC power supply
Specifications
Common
- Conversion: 24-bit A/D, 24-bit D/A
- Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
- Power: DC IN
- Device Connection: USB B-Type 2.0
- Enclosure: metal sheet
Line Outputs 1-2 (Monitor)
- Configuration: Electronically balanced and floating, automatically compensates level when connection is balanced or unbalanced, tip hot.
- Output impedance: 150 Ohms balanced, 75 Ohms unbalanced
- Output Level: 0 dBFS corresponds to +21 dBu
- Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 116 dB(A)
- THD+N: -106 dB(A) at -1 dBFS
- Channels 1-2 crosstalk: 115 dB(A)
Line Outputs 3-4
- Configuration: Unbalanced
- Output impedance: 75 Ohms
- Output Level: 0 dBFS corresponds to +16 dBu
- Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 115 dB(A)
- THD+N: -102 dB(A)
- Channels 3-4 crosstalk: 112 dB(A)
Output 5 (Amp output)
- Configuration: Unbalanced, floating, with selectable ground lift
- Output impedance: 100 Ohms
- Output Level: 0 dBFS corresponds to -6 dBu
- Frequency response: From 10 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 110 dB(A)
- THD+N: -104 dB(A)
Headphones Out
- Output impedance: Virtually ideal source (zero Ohms) until clipping
- Maximum Output level: +12 dBu into 50 Ohms load (approx 180 mW)
- Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 112 dB(A)
- THD+N: -100 dB(A)
Mic Inputs 1-2
- Configuration: Class-A discrete differential microphone preamp, pin 2 hot
- Input impedance: 4 kOhms differential
- Input level, min gain: 0 dBFS is obtained with a +12 dBu signal at the XLR input
- Input level, max gain: 0 dBFS is obtained with a -37 dBu signal at the XLR input
- Frequency response: From 5 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 116 dB(A)
- THD+N: -106 dB(A) at -10 dBFS
Line Inputs 1-2
- Configuration: Class-A discrete differential line receiver, tip hot
- Input impedance: 20 kOhms differential
- Input level, min gain: 0 dBFS is obtained with a +26 dBu signal at the TRS input
- Input level, max gain: 0 dBFS is obtained with a -24 dBu signal at the TRS input
- Frequency response: From 5 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 116 dB(A)
- THD+N: -106 dB(A) at -10 dBFS
Instrument Inputs 1
- Configuration: Multiple topology instrument preamp
- Input impedance, PASSIVE mode: Variable from 1 MOhms down to 2.2 kOhms
- Input impedance, ACTIVE mode: 10 kOhms
- Input level, min gain: 0 dBFS is obtained with a +14 dBu signal at the TS input
- Input level, max gain: 0 dBFS is obtained with a -17 dBu signal at the TS input
- Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 117 dB(A)
- THD, PURE mode: 0.0015 %
- THD, JFET mode: 0.5 %
Instrument Inputs 2
- Configuration: Hi-Z instrument preamp
- Input impedance: 1 MOhms
- Input level, min gain: 0 dBFS is obtained with a +14 dBu signal at the TS input
- Input level, max gain: 0 dBFS is obtained with a -17 dBu signal at the TS input
- Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 117 dB(A)
- THD: 0.006%

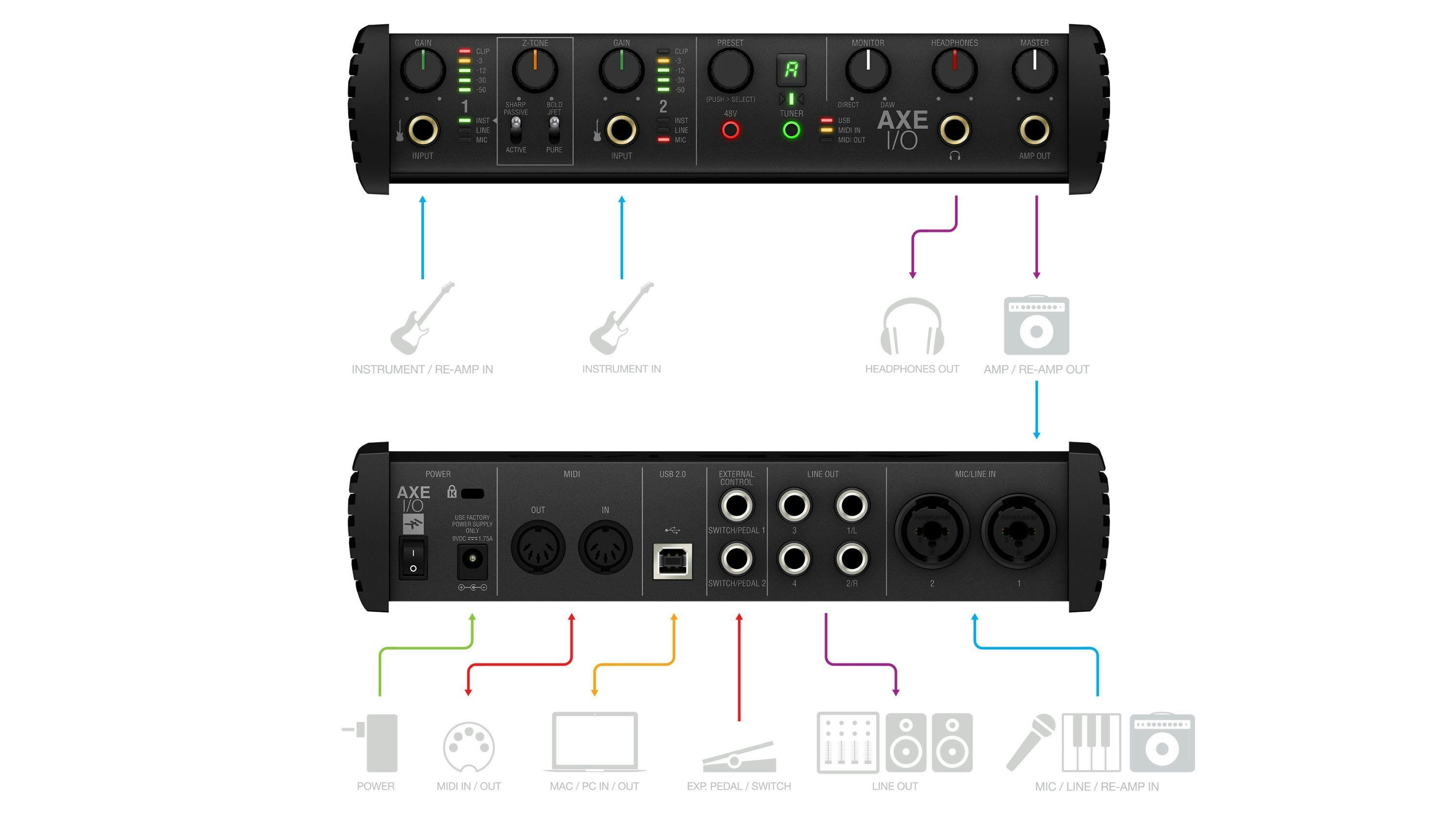

Connections (Front Panel)
- Two 1/4" instrument input jacks
- Two analog potentiometers for Input GAIN
- Two 5 segments input level meter (peak)
- Two INST, LINE, MIC LEDs
- Analog potentiometers for Z-Tone control
- Pick-Up selector (PASSIVE/ACTIVE)
- Preamp topology selector (JFET/PURE)
- +48V phantom power switch
- Tuner switch
- Tuner display and LEDs
- USB LEDS
- MIDI IN/OUT LEDs
- push-encoder for Presets
- Monitor knob
- 1/4" headphones output jack
- Master potentiometer for main output control
- 1/4" Amp output jack
Connections (Rear Panel)
- On/Off power switch
- External DC power input
- MIDI I/O 5-pin DIN connectors
- B-Type USB socket for connecting a computer (Mac/PC)
- 2 x 1/4" TRS External controllers sockets
- 2 x 1/4" TRS Balanced floating line outputs
- 2 x 1/4" TRS Unbalanced line outputs
- 2 Combo sockets for MIC input and Instrument input (auto selecting)
