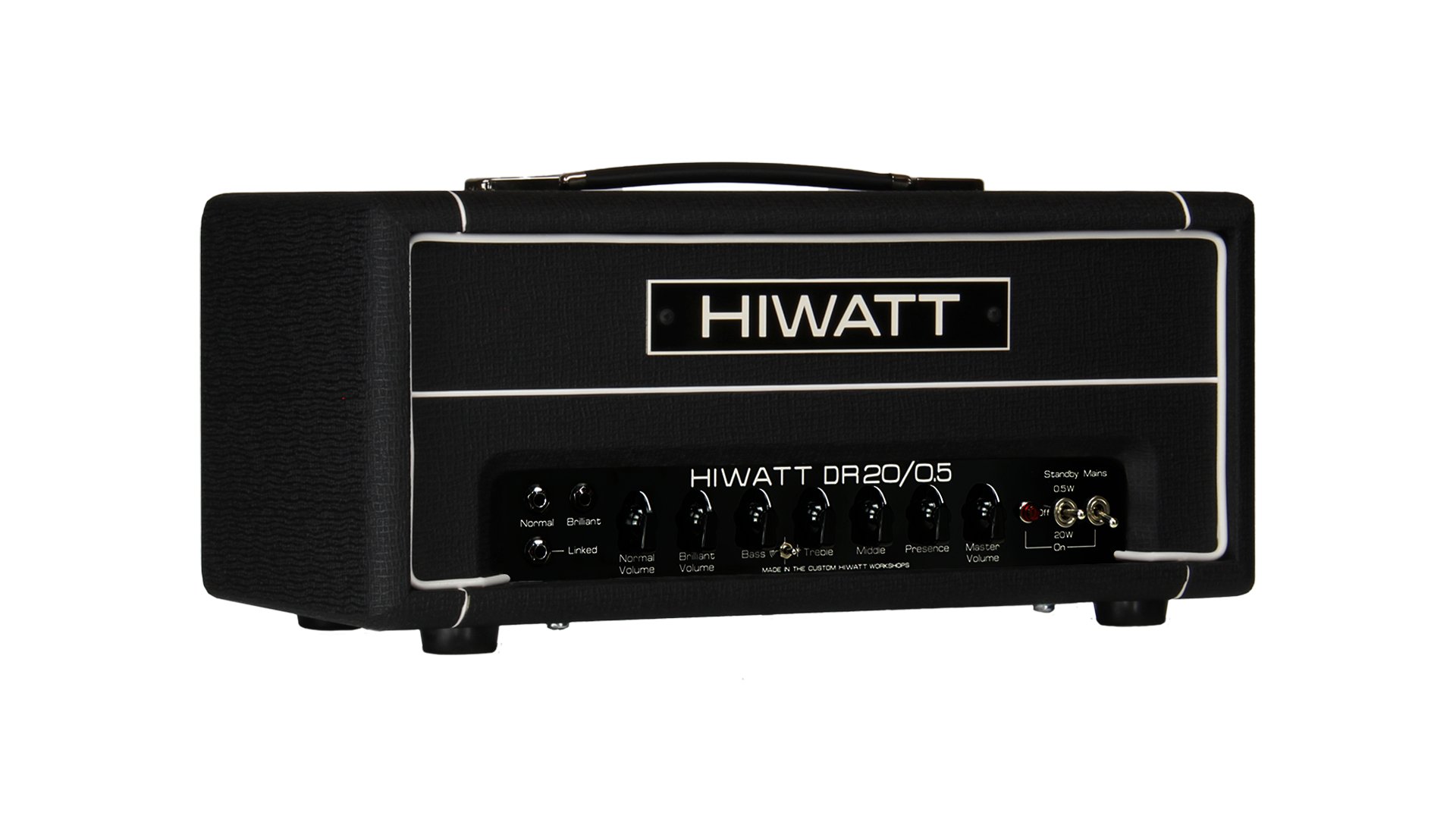

Hiwatt DR20-0.5 Custom The Little Rig 20w Amp Head
FREE UK Delivery
Earn 7197 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: HW-DR20P5-HD-BLACK
You might also need
Product Description
Here’s what Hiwatt say about the Hiwatt DR20-0P5 CUSTOM Hiwatt The Little Rig 20w Amplifier Head in Black:
The legendary Hiwatt preamp circuit and tonestack found in the DR103/504 feeding a 20W (switchable to 0.5W) output section offers classic Hiwatt Headroom, clarity, instantaneous response, sonic depth, and detail, with breakup at recording and club volumes (switch to 0.5W in the greenroom).
Iconic 60s British tone in a lightweight and portable package.
Key Features
- Original linked input circuit as famously modded for Pink Floyd, increasing signal to the V1 preamp valve and producing a fuller, more present and forward sound.
- Normal and Brilliant channels. Versatile and intuitive, perfect for bringing life out of dark pickups or taming shrill high end in bright pickups.
- Volume for any gig — Switchable wattage allows switching from 20W down to 0.5W for bedroom playing and smaller venues.
Specifications
- Wattage: Switchable — 20W or 0.5W
- Channels: Normal, Brilliant
- Inputs: Normal, Brilliant & Linked
- Output: 2 x 1/4" Speaker Out
- preamp valves: 4 x ECC83 (12AX7)
- output valves: 2 x EL84
- controls: Normal Volume, Brilliant Volume
- 3-Band EQ shared by both channels — Bass, Treble, Middle
- Presence — Treble Boost shared by both channels
- Master Volume
- Standby — On/Off
- Mains — On/Off
- Impedance: Switchable using Variable Impedance Outputs on the rear panel — 4 Ω, 8 Ω, or 16 Ω
- Height: 210mm (~9")
- Width: 497mm (~20")
- Depth: 250mm (~10")
- Weight: 9.6 Kg (~22 lbs)
- Road Ready — Rugged 18mm Birch-Ply Construction
- Band Ready — ’Soak Tested’ by our Custom Shop Technicians
- Touring Ready — World Impedance Inputs
- Based on Hiwatt’s original circuit designed by Dave Reeves.
- Original Partridge spec English transformers.
- Meticulously hand-wired to Harry Joyce’s exacting military standards.
- ?? Proudly manufactured in the Hiwatt Custom Shops.
