Product Description

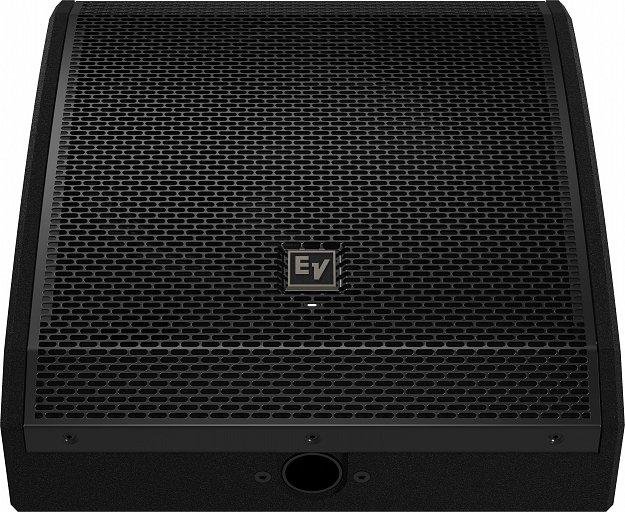

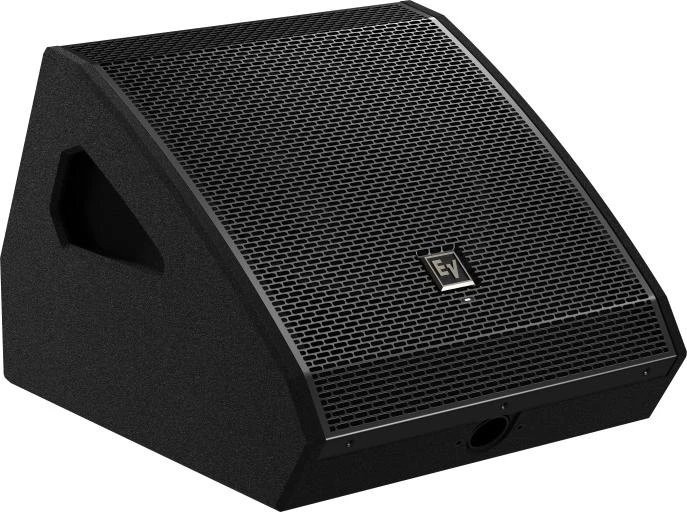

The PXM-12MP is a powerful, portable loudspeaker system designed for musicians, DJs, and audio professionals who require exceptional monitoring and playback performance. Whether used as a floor wedge or a main PA system, it delivers high-quality sound with a symmetrical 90° x 90° coverage pattern, ensuring clarity and consistency across the stage. Featuring a 12” / 1.75” coaxial driver and a 55° monitor angle, it provides optimal intelligibility whether standing close or further away.
Equipped with Electro-Voice’s QuickSmartDSP, users can fine-tune their sound with four presets, a three-band EQ, and five user-programmable settings. The 700W Class-D amplifier, designed by Dynacord, delivers up to 129 dB SPL, ensuring powerful and distortion-free audio. The integrated mixing section features multiple inputs, allowing for versatile connectivity. Built to last, the PXM-12MP has been rigorously tested with over 500 hours of endurance trials. A pole mount enables additional applications, such as main PA, delay fills, or subwoofer configurations.
Key Features:
- Multi-functional design:
Can be used as a floor wedge, a main PA system, or a delay fill speaker, offering exceptional flexibility for various performance needs. - Advanced DSP control:
QuickSmartDSP includes four EQ presets, a three-band EQ, feedback notch filter, and user-programmable settings for easy sound customisation. - High-performance power:
A 700W Class-D amplifier with a peak SPL of 129 dB ensures powerful and clear audio, even in demanding live performance environments.
Precision Monitoring for Performers:
The PXM-12MP’s 55° monitor angle is optimised for live performers, providing excellent audio clarity from different stage positions. Unlike conventional wedges that restrict positioning, this design ensures that vocalists, guitarists, and instrumentalists can hear their mix clearly without being confined to one spot.
Comprehensive Connectivity and Control:

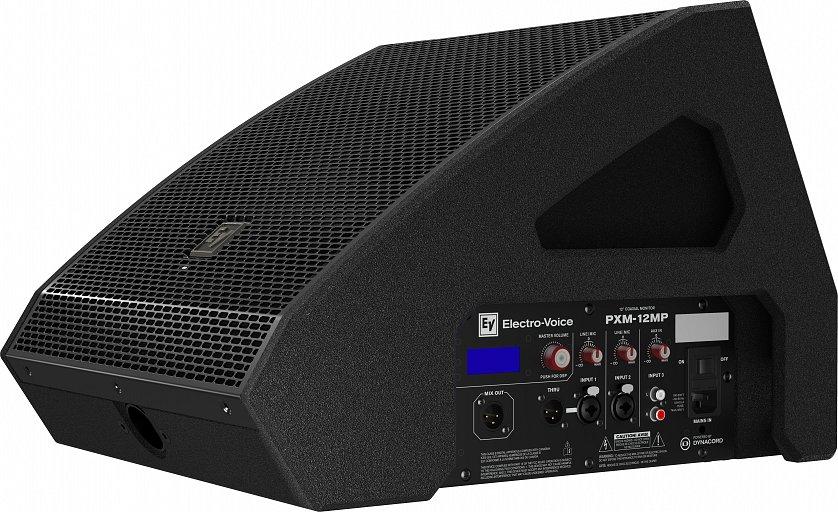

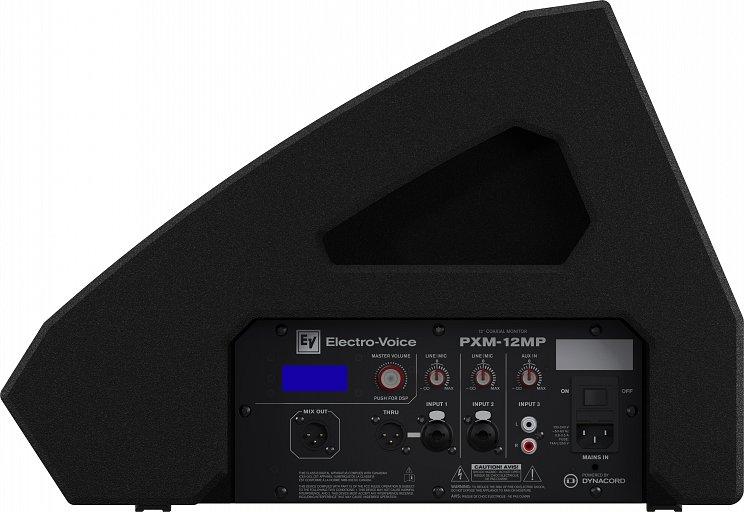

This system features an integrated three-channel mixer, including two XLR/TRS combo inputs and a stereo RCA input. With advanced DSP, users can access four EQ presets, adjustable low-cut filters, and a tunable feedback notch filter. These features make it easy to adapt the speaker for different performance settings and instrument types.
Robust and Reliable Construction:
Designed for touring and stage use, the PXM-12MP is built with a durable 15 mm plywood enclosure and a steel grille with a black powder coat. Electro-Voice’s extensive endurance testing ensures reliability, even under demanding conditions, making it a trusted choice for professionals.
Specifications:
- Frequency Response (-3 dB): 64 Hz - 20 kHz
- Frequency Range (-10 dB): 53 Hz - 20 kHz
- Maximum SPL: 129 dB
- Coverage (H x V): 90° x 90°
- Amplifier Power: 700 W Class-D
- LF Power Rating: 500 W
- HF Power Rating: 200 W
- Crossover Frequency: 1.6 kHz

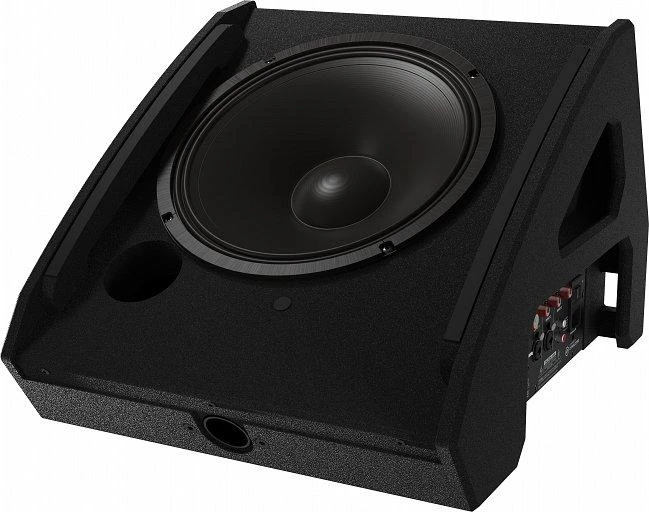

- Transducer: CXCA2128-1NA 12” / 1.75” 2-way coaxial
- Inputs: 2x XLR/TRS combo, 1x stereo RCA
- Thru Output: 1x XLR
- Enclosure: 15 mm plywood
- Grille: Steel with black powder coat
- Colour: Black
- Dimensions (H x W x D): 334 mm x 409 mm x 484 mm
- Net Weight: 13.5 kg
- Shipping Weight: 15.6 kg
- Power Consumption: 100 - 240 V AC, 50 - 60 Hz, 0.8 - 0.5 A
