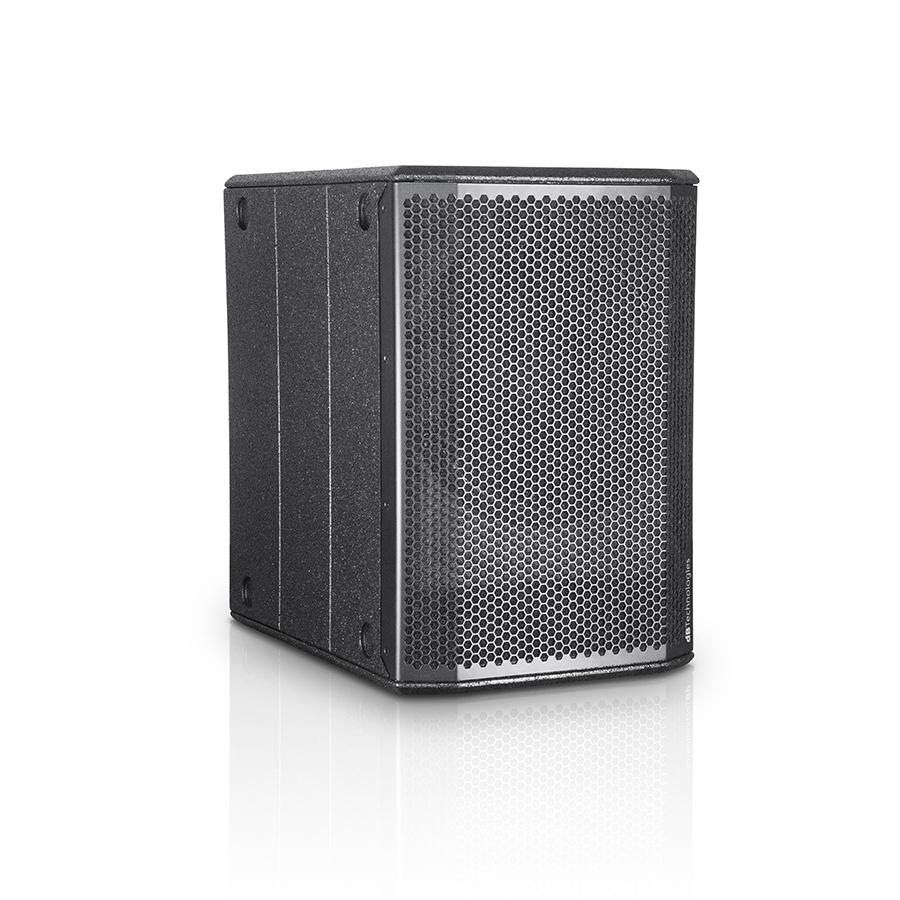

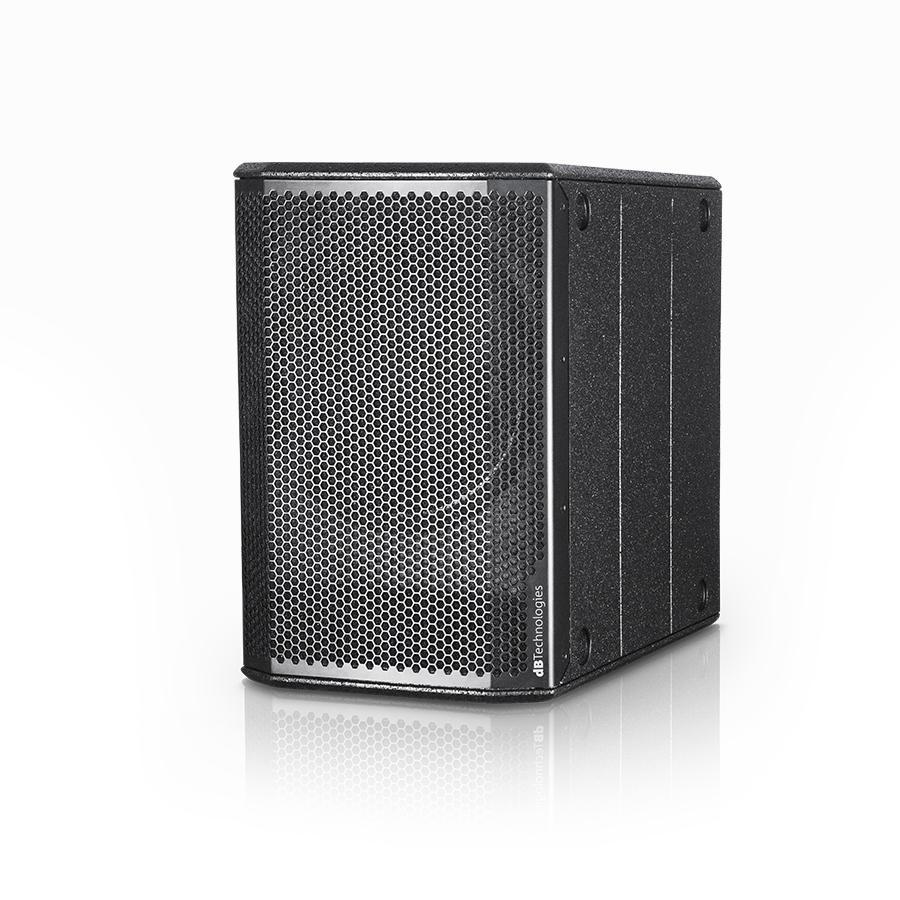

dB Technologies SUB 612 - 12" ACTIVE SUB
Hear your low end live with an active sub
FREE UK Delivery
Earn 369 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: SUB612
You might also need
Product Description
Just like the 15” and 18” models of the family, the bass reflex SUB 612 features a 600W RMS Class D power amplifier with SMPS, delivering outstanding sound pressure levels of up to 129 dB. Despite its compact and lightweight design (only 19.8 kg), it provides impressively precise low end reproduction.
The SUB 612's remarkable audio performance enables users to build most PA systems with just one subwoofer and two full range speakers. Thanks to separate balanced X-Over signal feeds for left and right speakers, external processing or crossovers are unnecessary. The amplifier panel offers Mono or Stereo audio feed operation, polarity inversion, and selectable output link mode (True Bypass or X-Over). For added punch, a low frequency boost EQ can be activated using the Sub BOOST Mode switch.
Key Features:
- Powerful and Compact:
The SUB 612 delivers a maximum SPL of 129 dB with a 600W RMS Class D amplifier while maintaining a lightweight, portable design. - Advanced DSP Processing:
Equipped with a 28/56 bit DSP controller, ensuring optimal performance with built in limiters for peak, thermal, and RMS protection. - Flexible Integration:
Offers Mono and Stereo input options, selectable output modes, and a Sub BOOST mode for enhanced low frequency response.
Optimised Sound Performance:
The SUB 612 features an omnidirectional 12” woofer with a 2.5” voice coil, ensuring a deep and precise bass response. Its frequency range of 46 Hz to 123 Hz allows for tight integration with full range speakers, making it an excellent choice for various audio applications.
Versatile Connectivity:

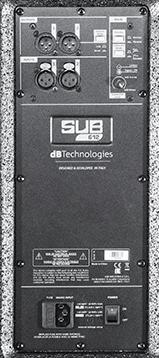

Equipped with two balanced XLR inputs and two balanced XLR outputs, the SUB 612 seamlessly integrates into existing setups. Users can select True Bypass or X-Over output modes to suit their configuration needs. The polarity switch and Sub BOOST mode provide additional fine tuning options.
Portable and Durable Design:
Built with a sturdy black painted plywood cabinet, the SUB 612 is both durable and lightweight. A top mounted handle and M20 pole mount ensure easy transportation and versatile setup options, making it ideal for mobile and installed sound systems.
Specifications:
- Speaker Type: Active Subwoofer
- Frequency Response (-10dB): 46 - 123 Hz
- Max SPL (1m): 129 dB
- Directivity: Omnidirectional
- LF Driver: 12" woofer with 2.5" voice coil
- Amplifier Technology: SMPS Digital Amplifier
- Amplifier Class: Class D
- RMS Power: 600 W
- Peak Power: 1200 W
- DSP Controller: 28/56-bit
- Limiter: Peak, Thermal, RMS
- Controls: Attenuation, Flat/Boosted Switch, Output Mode Switch, Polarity Switch
- Inputs: 2x XLR (balanced)
- Outputs: 2x XLR (balanced)
- Housing: Black painted plywood
- Handles: 1 on top
- Pole Mount: M20
- Dimensions (W x H x D): 360mm x 550mm x 525mm
- Weight: 19.8 kg
