Boss GKC-AD GK Guitar Synth Converter - 13 Pin to Serial
Drive the next-generation Boss Serial GK interface from a Roland GK-3 or GK-3B Divided Pickup.
UK Delivery - From £2.99
Earn 172 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: GKCAD
You might also need
Product Description

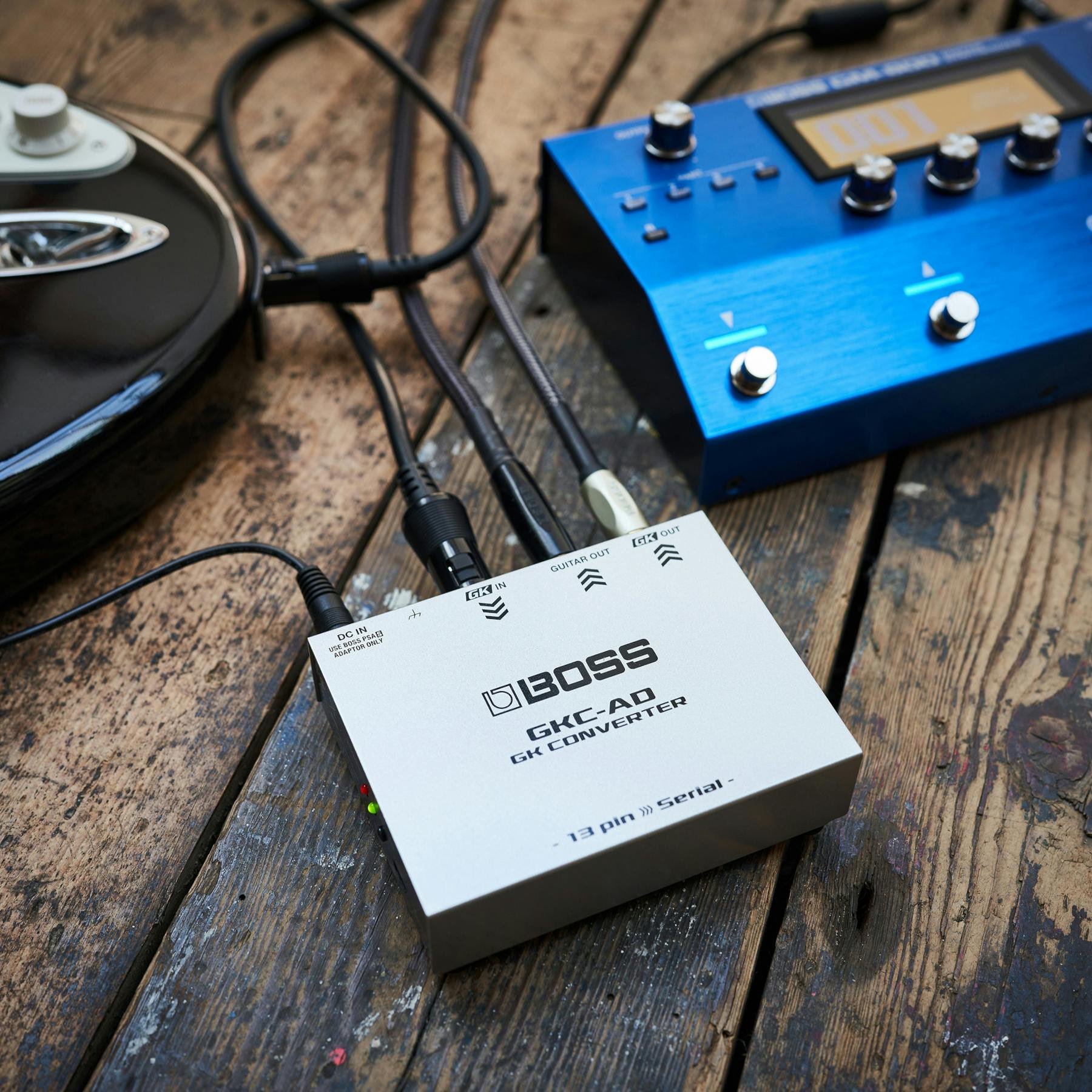

The latest Boss guitar synthesizer products feature the Serial GK digital interface, a newly-developed connection method that delivers evolved performance over the analogue 13-pin GK interface used in earlier Boss and Roland guitar synth and modelling products. The GKC-AD GK Converter allows you to drive the Serial GK input on the GM-800 Guitar Synthesizer from a Roland GK-3 or GK-3B Divided Pickup, or an instrument equipped with a 13-pin GK output.
Key Features
- Converts analogue 13-pin GK pickup systems to the newly-developed Serial GK digital interface.
- 13-pin GK input and Serial GK output.
- Instrument output for passing normal guitar/bass pickup sounds embedded in the 13-pin connection.
- Compact and rugged metal design.
Specifications
- Nominal Output Level: -10 dBu (GUITAR OUT)
- Recommended Load Impedance: 10 k Ohms or Greater (GUITAR OUT)
- Current Draw: 240 mA
- Power Supply: AC Adaptor (Included)
Connectors
- GK IN Connector: 13 Pins DIN Type
- GK OUT Jack: 1/4-inch TRS Phone Type (for BGK Cable Only)
- GUITAR OUT Jack: 1/4-inch Phone Type
- DC IN Jack
- USB Port: USB Micro-B (Program Update Only)
Weight & Dimensions
- Weight: 340 g / 12 oz
- Dimensions (W x D x H): 115 x 92 x 36 mm / 4.528 x 3.622 x 1.417 inches
Accessories (Included)
- AC Adaptor
- Owner's Manual
- Leaflet (Using the Unit Safely)
Options (Sold Separately)
- Serial GK Cable: BGK-15, BGK-30
