Behringer MULTIMODE FILTER / RESONATOR MODULE 1047 2500 Series 12dB State Variable Filter Module
UK Delivery - From £2.99
Earn 46 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: 000-E9400-00010
You might also need
Product Description
Here's What Behringer say:
Modular Synthesis
The first 2500 series synth modules came out in the 70s and tended to be extremely expensive. They were mainly all discrete transistor designs with some op-amps as at the time op-amps were high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like The Who, Jean Michel Jarre, Vangelis, Kraftwerk and so many more, giving us some of the greatest records and film soundtracks we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.

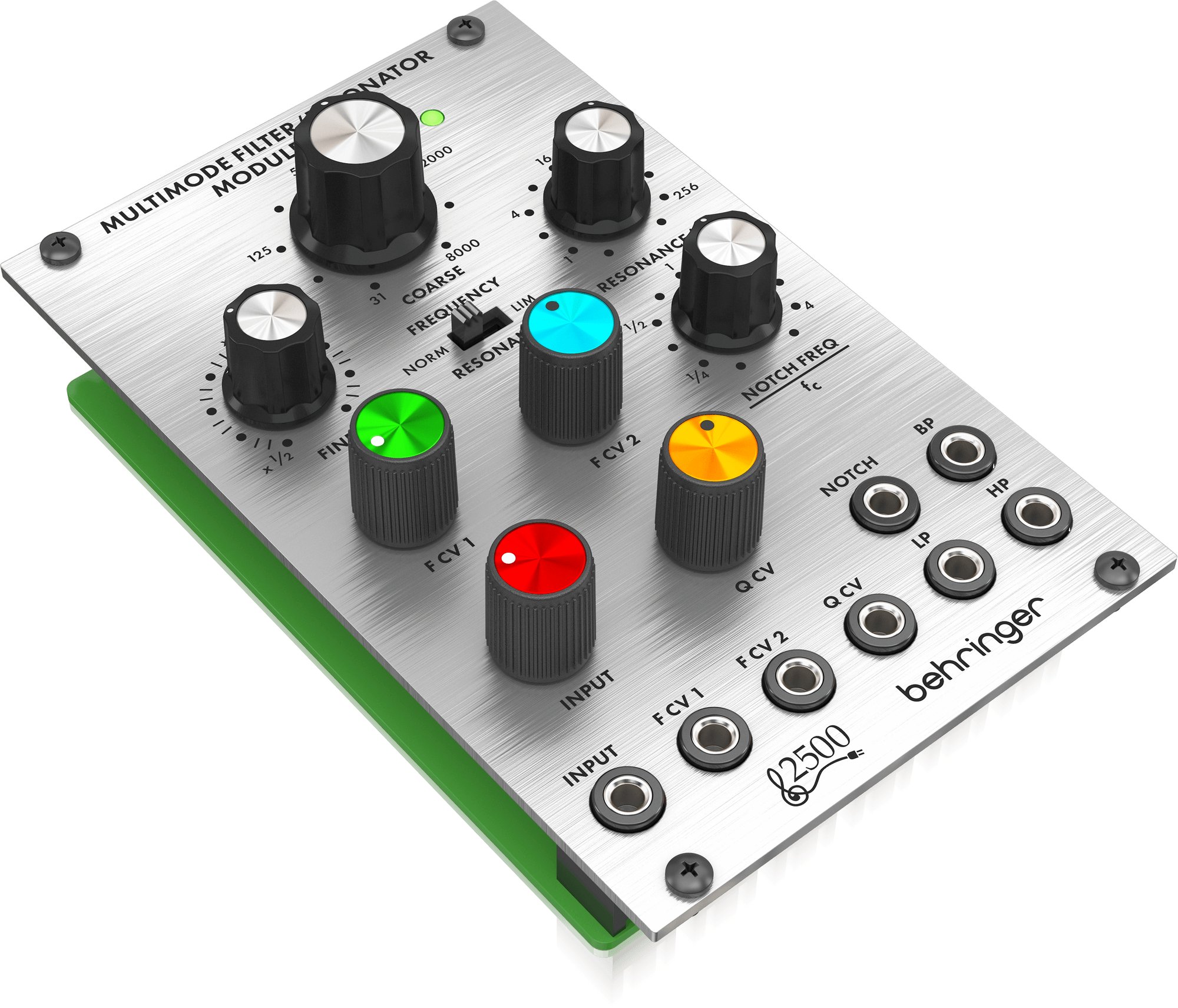

MULTIMODE FILTER/RESONATOR MODULE 1047
This is the Behringer 2500 series MULTIMODE FILTER/RESONATOR MODULE 1047. An authentic reproduction of the original “System 2500” circuitry from the 70’s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the MULTIMODE FILTER/RESONATOR MODULE 1047 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.
MULTIMODE FILTER RESONATOR
The MULTIMODE FILTER/RESONATOR MODULE 1047 is a classic voltage controlled 12 dB per octave state variable filter, the filter is a matched transistor design for a vintage sound. The 1047 filter is equipped with a coarse and fine filter frequency controls, a resonance (Q) control which acts on all 4 filter outputs, a resonance limit switch prevents signal overload when high levels of resonance are used, the notch frequency/fc control allows the notch frequency to be adjusted up or down from fc as set by the frequency controls, 2 summed frequency CV attenuators and a resonance (Q) CV attenuator for maximum flexibility, the signal input is also equipped with an attenuator. All this gives you endless possibilities of filter curve shape to create the ultimate sound.
Features
- Classic-sounding 1047 analog multi-mode filter and resonator module from the '70s
- Authentic reproduction of the circuitry from the "2500" Series
- Consists of a highly resonant 12 dB state-variable filter capable of proving a wide variety of formant shaping and tonal modulation
- Filter simultaneously provides high-pass, band-pass, low-pass and notch outputs
- Coarse and fine controls adjust the cut-off frequency of the filter from 16 Hz to 16 kHz with 2 external control signal inputs and attenuators
- Resonance (Q) control adjusts the level of the resonant peak from 0 to 512 with an external control signal input and attenuator
- Keyboard percussion feature allows the filter to generate a wide range of percussive sounds
- A keyboard gate signal is connected to the external input with a keyboard CV connected to a frequency control input
- Striking a key will create percussive sounds when the Keyboard Percussion mode is activated
- When the keyboard is released the filter tone damps at a rate determined by Final Q
- Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V
