Audient EVO 16 24-in 28-out USB-C Audio Interface
FREE UK Delivery
Earn 378 Loyalty Points
FREE software once registered!
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: EVO16
You might also need
Product Description

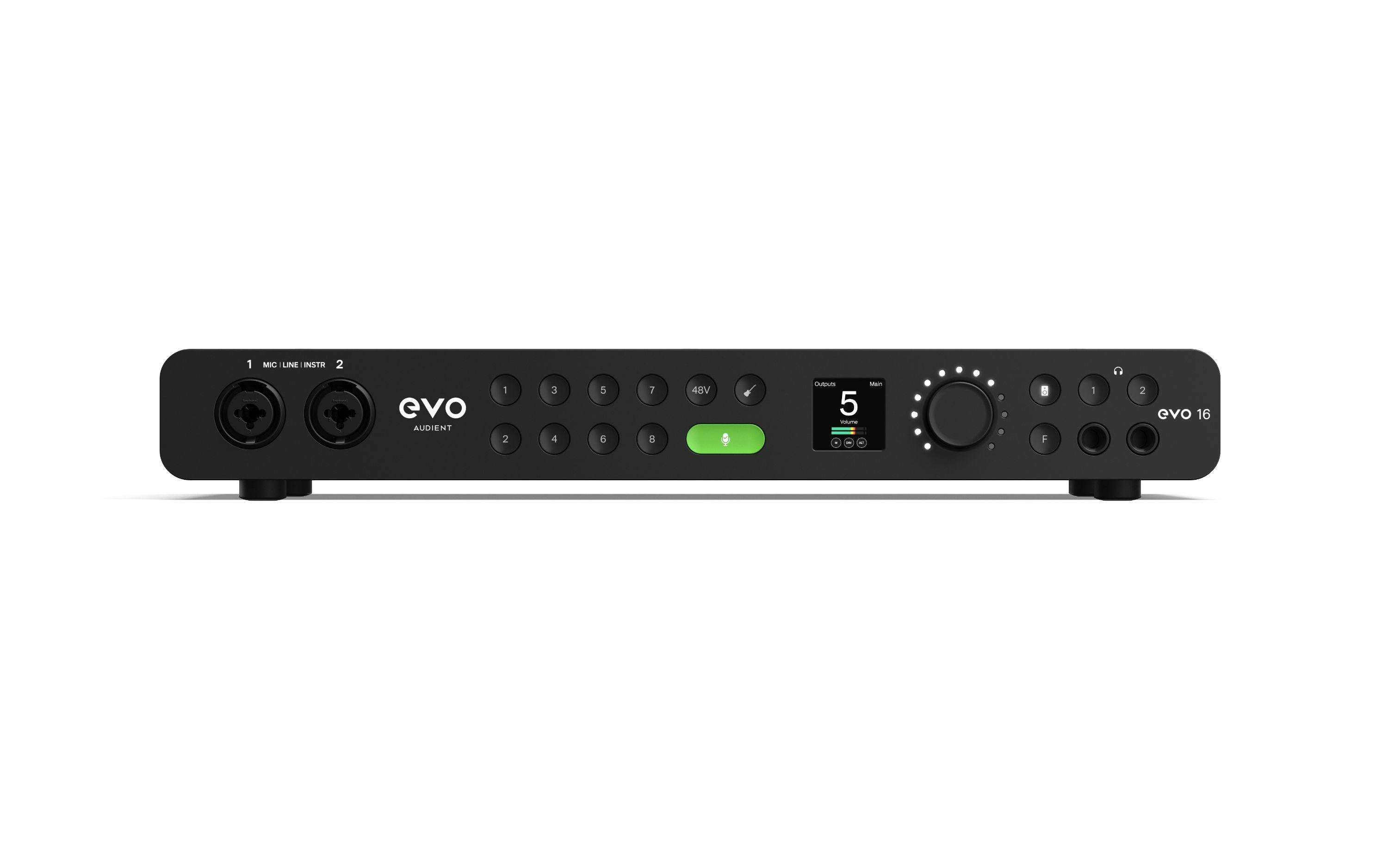

The Audient EVO 16 Audio Interface is a studio powerhouse, designed from the ground up to ensure users have the easiest experience possible while offering enough I/O firepower to handle even the biggest of recording sessions!
Featuring 8 award winning EVO preamps alongside Audient's advanced converter technology ensures your recordings sound the best they possibly can. Intelligent mic preamps set their own levels with Smartgain and make use of the new, ground-breaking Motion UI control system.
Key Features
- 8 x EVO Mic Preamps
- 2 x JFET Instrument Inputs
- 2 x Independent Headphone Outputs
- 8 x Line Outputs
- 2 x Optical Inputs
- 2 x Optical Outputs
- Multi-Channel Smartgain
- 'EVO Motion UI' Control System
- High-Res LCD Screen
- One Knob Centralised Control
- Ultra Clear Metering
- Input/Output Control
- Channel Status Indication
- Programmable Function Button
- Ultra-Low Latency Software Mixer
- Monitor Control
- Audio Loop-back
- Word Clock Output
- USB2.0 (USB-C Connection)
- 24bit / 96kHz
Top-class Mic Preamps featuring Smartgain Technology
With 25 years of experience behind them, Audient's mic preamps have been designed to deliver the most accurate, clean and true to source version of your audio no matter what you're recording. The EVO Preamp technology has the advantages of an analogue mic preamp combined with digitally controlled precision which gives you the ability to set your gain with pin-point accuracy!
Powered by Audient's lightning fast Smartgain algorithm, Smartgain uses advanced peak analysis to automatically analyse and set your gain to the perfect level in under 20 seconds! All you need to do is set up your mics, engage Smartgain and the EVO 16 will take it from there. Set the gain for all 8 Mic preamps with the touch of a button!
Future-proof your Setup
The EVO 16's optical inputs and outputs have you got covered for sessions of any size! Supporting both ADAT and SPDIF, you can add up to 16 channels of mic preamps to your setup, giving you plenty of options for expanding your recording capabilities down the line.
Monitor your settings via the LCD Screen
All details and adjustments made are displayed in real-time via the TFT backlit LCD screen, allowing you to navigate hardware features and make changes on the fly with ease. Take full control of your recording without ever needing to look at your computer!
Specifications
Microphone Preamplifier
- Mic Gain Range: 58 dB
- Line Gain Range: 58dB with -10dB Pad
- Phantom Power: 48v +/-4v @ 10mA/Channel
- CMRR: >80dB @ 1kHz
- Maximum Input Level: +16dBu
- Input Impedance (Mic): >3kΩ Balanced
- Input Impedance (Line): >10kΩ Balanced
- Frequency Response: +/-0.5dB 10Hz to 40kHz
- Crosstalk: <-105dBu @ 1kHz <-103 @ 10kHz
- THD+N @ 0dBu (1kHz): <0.0015%
- SNR: 100dB
- Mic EIN: <-127.5dBu
- XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
- 1/4" Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
D.I.
- D.I Gain Range: 58 dB
- Maximum Input Level: +10dBu
- Input Impedance: 500k
- THD+N @ 0dBu (1kHz): <0.1%
- SNR: 100dB
- Frequency Response: +/-0.5dB 10Hz to 20kHz
- 1/4” Jack: TIP (Hot) & SLEEVE (Shield)
Analogue To Digital Converter
- Digital Reference Level: 0dBFS = +10.5dBu
- Frequency Response: +/-0.5dB 10Hz to Fs/2
- Crosstalk: -125dBu @ 1kHz & 10kHz
- THD+N @ -1dBFS (1kHz): <0.001%
- Dynamic Range: 112.5dB A-Weighted
- Digital To Analogue Converter
- Maximum Output Level: 12dBu
- Digital Reference Level: 0dBFS = +12dBu
- Output Impedance: <50Ω
- Frequency Response: +/-0.5dB 10Hz to Fs/2
- Crosstalk: <-110dBu @ 1kHz
- THD+N @ -1dBFS (1kHz): <0.001%
- Dynamic Range: 121dB A-weighted
- 1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
Headphone Output
- Max Output Level: 11.25dBu
- Output Impedance: <50Ω
- Frequency Response: +/-0.5dB 10Hz to Fs/2
- Crosstalk: -108dBu @ 1kHz
- THD+N @ -1dBFS (1kHz): <0.001%
- Dynamic Range: 118dB A-weighted
- Max Level Into 30ohms: +8.5 dBu, 0.00094% THD+N, 1.66Vpk Power: 86mW
- Max Level Into 60ohms: 10 dBu, 0.00079% THD+N, 2.55Vpk Power: 104mW
- Max Level Into 600ohms: 11.2 dBu, 0.00057%THD+N, 3.83Vpk Power: 24mW
- 1/4” Jack: TIP (Left), RING (Right) & SLEEVE (Shield)
