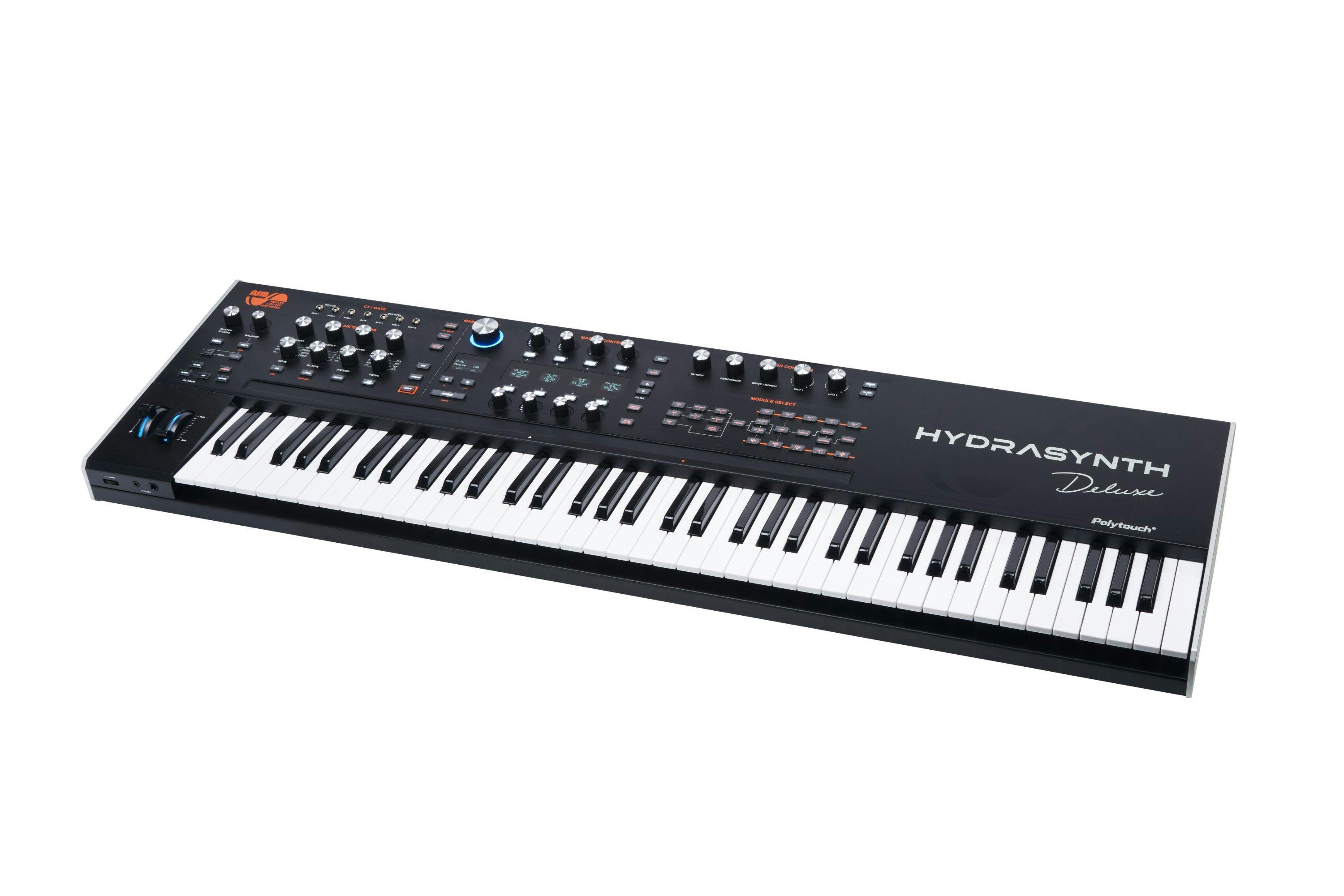

ASM Hydrasynth Deluxe 16-Voice Polyphonic Digital Synthesizer
Featuring 16-Voice polyphony and 73-keys keybed with Aftertouch
FREE UK Delivery
Earn 1355 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: HYDRASYNTHDLX
You might also need
Product Description
When you thought that the ASM Keyboard couldn't get any better, ASM have just announced the new Hydrasynth Deluxe! With 16-voice polyphony and a new 73-keys keybed, this new powerhouse is guaranteed to boost your music production in no time!
Hydrasynth Deluxe is the largest keyboard with ASM Polytouch technology. Each of the two sound engines features 3 Oscillators, dual Wave Mutators and 2 filters, that can be configured in series or parallel, but don't be intimidated! The intuitive design will help you to pick up the workflow instantly.
Key Features
- 16-voice polyphonic digital wave morphing synthesizer
- Single/Multi Dual/Keysplit voicing options
- POLYTOUCH™ Polyphonic Aftertouch, Note on/off velocity keyboard with 73 full-size keys
- MPE (MIDI Polyphonic Expression) compatibility
- Multi-function ribbon controller (Modulation, Pitch bend, Theremin mode)
- Microtuning support via MIDI Tuning Standard files
- 1024 Single program locations with Category Search
- 640 Multi program locations with 1280 embedded program locations
- Dual stereo audio outputs
Dual Sound Engine for Your Sound Design Dreams
The Hydrasynth Deluxe offers 16 voices of polyphony in single mode, which can be split into two completely separate 8 voice sound engines in Multi mode. The two Multi modes for separate sound engine operation includes Keysplit which creates classic keyboard splitting between two patches, and Dual which enables layering of two patches over the whole keyboard. This means you can either split or layer your synth for bi-timbral operations.
The oscillators allow you to choose from 219 single cycle waveforms, You can also create your own waves thanks to the Wavelist mode, that allows you to select 8 waves out of 219 and arrange them the way you want. To give even more spice to your waves, you have an array of mutators at your fingertips, including FM Linear, Wavestack, Harmonic Sweep and more!
Infinite Sound Possibilities...
As we mentioned, Hydrasynth Deluxe is a real dream when it comes to shaping your own sound. ASM also added many features to really give you total power and creative freedom. The brand new 73-keys keyboard features Polytouch, ASM's exclusive technology that provides ON/OFF velocity and aftertouch as well as full polyphonic aftertouch.
On top of that you'll also be able to use the Ribbon Controller, which is freely assignable as a source in the Mod Matrix, but it can also be used in Theremin Mode where it will send both trigger and pitch.
Hydrasynth Deluxe also features two filters. The first one has 16 different filter models, whilst the second one is a 12db per octave has a continuous sweep from either low pass > bandpass >high pass or low pass > notch > high pass, modelled on the classic SEM filter.
...And Even More
The Hydrasynth Deluxe is provided with 5 DAHDSR (Delay, Attack, Hold, Decay Sustain Release) envelope generators and 5 LFOs, each of which has 10 standard waveforms to choose from and a Step mode to create sequences up to 64 steps.
With 32 user-definable modulation routings, you will have plenty of ways to use the 29 modulation sources and 155 modulation destinations. Almost everything in the synth engine can be a modulation destination including the effects and arpeggiator. The Modulation matrix points themselves can also become modulation destinations. Modulation sources & destinations include the CV Mod In & Out jacks as well as MIDI CC’s.‹‹‹ ‹
Last but not least, the Hydrasynth Deluxe comes with 8 banks of 128 patches in Single mode. There are 5 banks of 128 Multi mode patches and these both hold a Lower and Upper patch which are separate from the Single patches.
Specifications
- Type: Polyphonic Wave Morphing Synthesizer
- Sound Engine Type(s): Wavescan
- Analog/Digital: Digital
- Number of Keys: 73
- Type of Keys: ASM POLYTOUCH™ Polyphonic Aftertouch Keyboard, On/Off Velocity-sensitive
- Other Controllers: Ribbon Controller, Pitch Bend, Mod Wheel
- Polyphony: 16 voices (Full/Layer/Split)
- Number of Presets: 1024 Single Programs, 1280 Programs in Multi (Upper/Lower)
- Number of Multis: 640 Programs
- Oscillators: 3 x Wavescan oscillators (219 Waveforms), 4 x Mutator wave shapers (8 Types), Noise (7 Types)
- Mutators: 8 Types (FM-Lin, WaveStack, PW-Orig, PW-Squeeze, PW-ASM, Harmonic Sweep, Hard Sync, PhazDiff)
- Noise: 7 Types (White, Pink, Brown, Red, Blue, Violet, Grey)
- LFO: 5 per Voice (Sine, Triangle, Saw Up, Saw Down, Square, Pulse27%, Pulse13%, S&H, Noise, Random, Step), Tempo syncable, Semitone Lock
- Envelopes: 5 per voice, Tempo syncable, Variable trigger sources
- Filter Types: 1 Multimode Filter (16 types) and 1 Variable LP-BP/Notch-HP filter, series or parallel routing
- Filters: Filter 1 (LP Ldr12, LP Ldr24, LP Fat12, LP Fat24, LP Gate, LP MS20, HP MS20, LP 3-Ler, BP 3-Ler, HP 3-Ler, LP Stn12, BP Stn12, HP Stn12, LP 1 Pole, LP 8 Pole, Vowel), Filter 2 (LP-BP-HP, LP-Notch-HP)
- Effects: 9 Insert Effects, 5 Delays, 4 Reverbs
- Effects Types: Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor, Distortion, Delay, Reverb
- Arpeggiator: 8 types (Up, Down, Up&Down, Up/Down, Order, Random, Chord, Phrase)
- Other: Mod Matrix (32 slots), Macro Controllers (8), Favorites (32), Randomizer (Patch and Module), MPE Compatibility, Warm Mode, Microtuning
- Audio Outputs: 4 x 1/4" Balanced (L/Mono Upper, R Upper, L Lower, R Lower)
- Headphones: 1 x 1/4", 1 x 1/8", Separate volume control
- USB: 1 x Type B
- MIDI I/O: In/Out/Thru
- Pedal Inputs: 2 x 1/4" (expression, sustain)

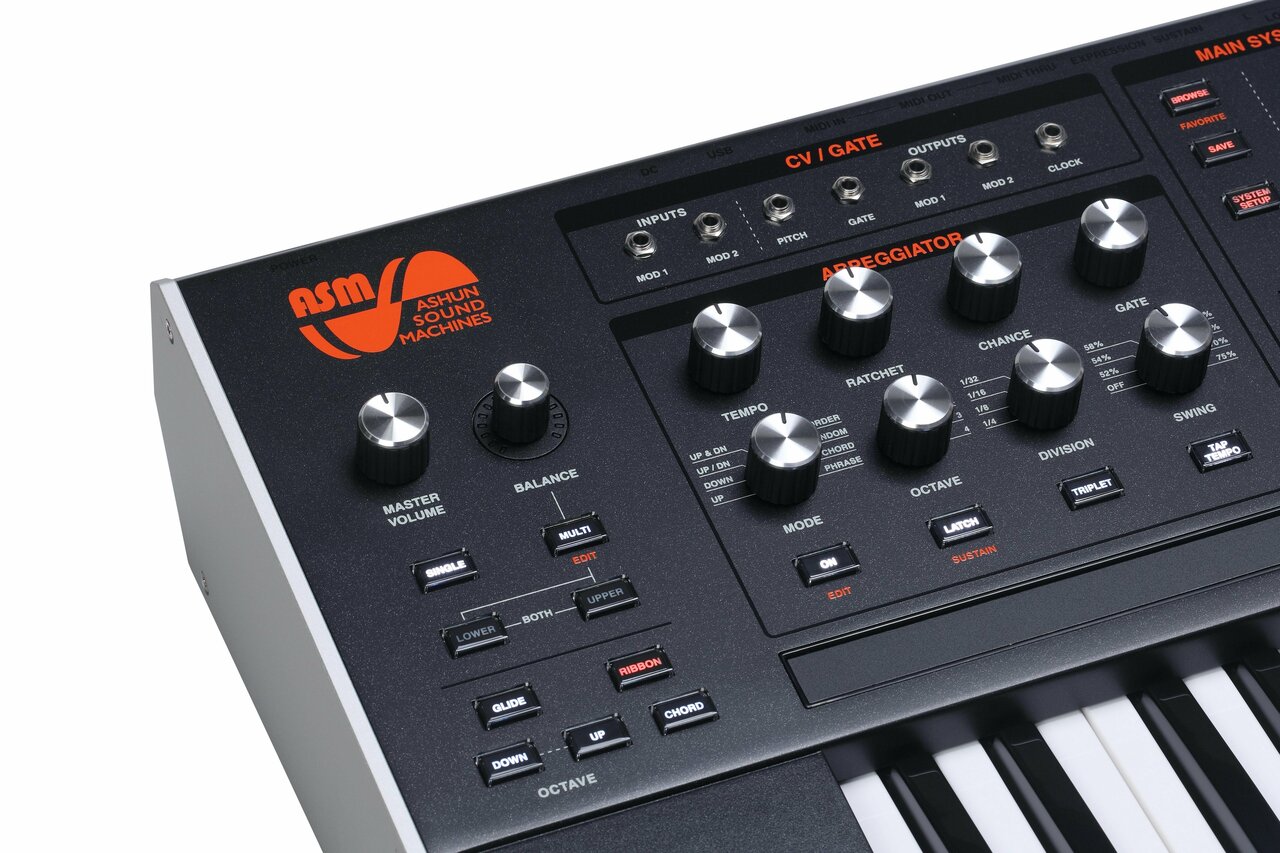

- Other I/O: 2 x 1/8" Inputs (Mod 1, Mod2), 5 x 1/8" Outputs (CV, Gate, Mod1, Mod2, Clock)
- Power Supply: 12V DC switchable power supply
- Additional: Utility shelf
- Height: 3.62" / 9.2cm
- Width: 44.45" / 112.9cm
- Depth: 13.62" / 34.6cm
- Weight: 29.33lbs / 13.3kg
- MPN: HSLX
