Antelope Orion 32+ Gen 4
Studio-grade interface with advanced professional plugins
FREE UK Delivery
Earn 2379 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: ORION32PLUSGEN4
You might also need
Product Description
128-Channel Thunderbolt/USB Audio Interface with 64-bit AFC. For over a decade now the Orion 32 line of interfaces has been revolutionizing the world of professional audio recording and production. The latest revision of this iconic 1RU studio centrepiece steps up the game by taking the best of its predecessors and adjusting it to the ever-growing needs and standards of the industry. Orion 32+ Gen4 incorporates the latest Antelope Audio tech, drastically boosting the unit’s potential.
Key Features:
- 128-CHANNELS OF AUDIO VIA THUNDERBOLT™ AND MADI
Orion 32+ Gen4 can stream twice as many channels over Thunderbolt as its predecessor and has twice as much MADI connectivity, now at 128 channels for both. These significant upgrades allow for up to four units to be daisy-chained for 128 channels of AD/DA via a single computer connection. This makes the unit a top choice for large recordings, live sound applications, complex post-production setups and broadcast facilities. It’s a preferred companion to large mixing consoles, hardware effects processing chains, analogue summing boxes, reel-to-reel setups, hardware synthesizers and pretty much anything else you can throw at it. - EASY INTEGRATION IN ANY SETUP
Thunderbolt or USB based the interface is compatible with both Windows and macOS systems and with extra options such as its ADAT port is guaranteed to fit all possible applications. Orion 32+ Gen4 is also ready to become your modular synth’s best friend as it features DC Coupled I/O allowing you to send CV signal from your DAW of choice straight up to your hardware instruments. - REDESIGNED WORKFLOW FOR IMPROVED PRODUCTIVITY
With a redesigned Software Control Panel for an even smoother workflow. It now features a powerful preset recall system complete with signal routing, level adjustments, mixer settings and monitoring controls, among others. A handy monitoring pop-out widget has been introduced for hands-on output level control and preset recall, featuring an always-on-top function.
SPECIFICATIONS:
ANALOG
- Analog Inputs
4 x D-SUB 25 (32 channels total), +24dBu max - Analog Outputs
4 x D-SUB 25 (32 channels total), +24dBu
2 x Monitor Outs on TRS 1/4 Jacks - D/A Monitor Converter
Dynamic Range: 130 dB (A-Weighted)
THD + N: -115 dB - A/D Converters (Line In)
Dynamic Range: 122 dB
THD + N: -116 dB
DC coupled - D/A Converters (Line Out)
Dynamic Range: 130 dB
THD + N: -115 dB
DC coupled

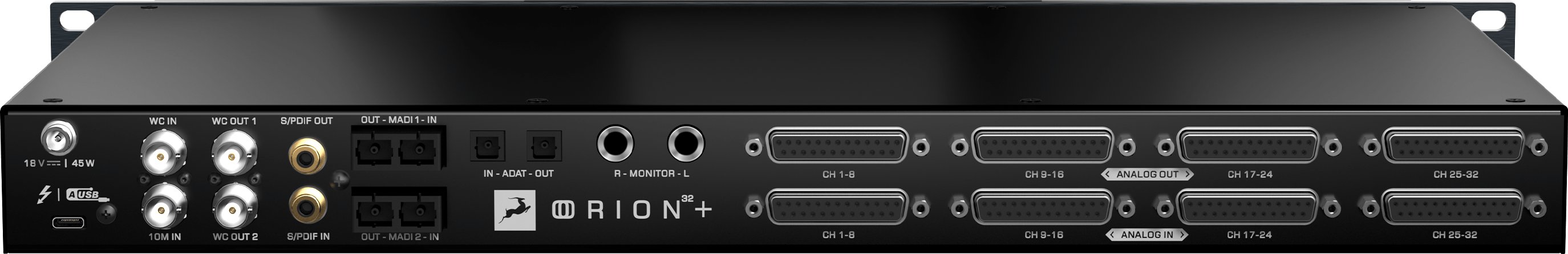

DIGITAL
- Digital Inputs
2 x Fiber Optic MADI (up to 128ch)
1 x ADAT (up to 8ch)
1 x S/PDIF - Digital Outputs
2 x Fiber Optic MADI (up to 128ch)
1 x ADAT (up to 8ch)
1 x S/PDIF - Thunderbolt
1 x Thunderbolt 3 (128 channels I/O) - USB I/O
Same connector as Thunderbolt port
USB 2.0 Hi-Speed; Data stream up to 480 Mbps/192kHz,
32 channels I/O, Type C
CLOCKING
- Word Clock Input
1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz - Word Clock Outputs
2 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz - Atomic Clock Input
1 x 10M Input @ 75 Ohms 1Vpp on BNC - Clocking System
4th Generation Acoustically Focused Clocking
64-bit DDS - Sample Rates (kHz)
32, 44.1, 48, 88.2, 96, 176.4, 192
OTHER
- Operating Temperature
0-50°C, 32-122°F - Weight
4kg / 7.4lbs - Dimensions
Width: 483 mm / 19”
Height: 44 mm / 1.73”
Depth: 280 mm / 11” - In the box:
Orion 32+ Gen4 - 32-channel AD/DA Interface with AFC™ Clocking Technology
Getting started guide
Power adapter
USB cable
